ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

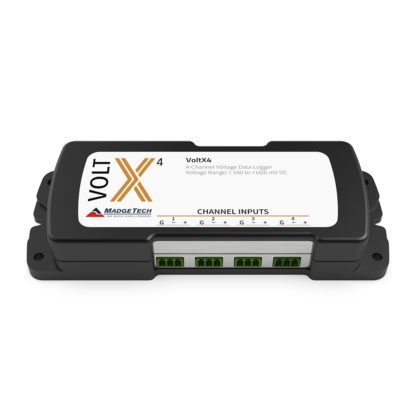

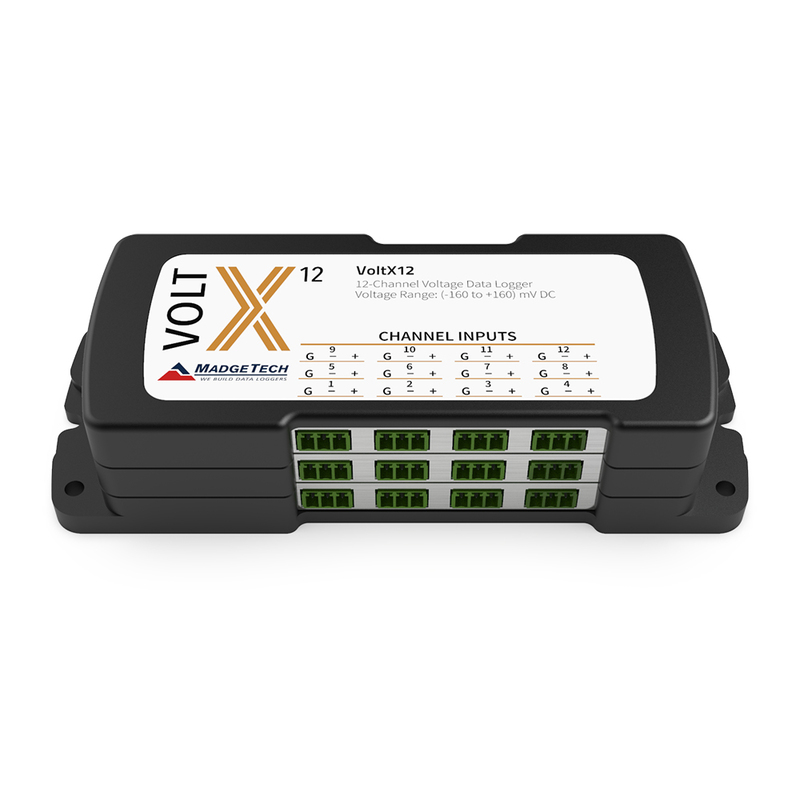

The VoltX Series includes 4, 8, 12, and 16-channel DC voltage data loggers.
Key Features:
- Available in 3 Measurement Ranges
- Memory Capacity of 2,700,000+ Readings
- Accepts Signals from Common Voltage Sources
General
Memory | 4-channel: 698,709 readings per channel 8-channel: 349,354 readings per channel 12-channel: 232,903 readings per channel 16-channel: 174,677 readings per channel (all channels enabled) |
Reading Rate | 4 Hz up to 1 reading every 24 hours |
Channels | 4, 8, 12, 16 |
LEDs | 1 per channel and 2 status LEDs |
Battery Life | 18 months |
Material | Black anodized aluminum |
Dimensions | 4-channel: 2.70 in x 7.25 in x 1.22 in (65.6 mm x 184.2 mm x 31.0 mm) 8-channel: 2.70 in x 7.25 in x 1.22 in(65.6 mm x 184.2 mm x 31.0 mm) 12-channel: 2.70 in x 7.25 in x 1.68 in(65.6 mm x 184.2 mm x 42.7 mm) 16-channel: 2.70 in x 7.25 in x 2.14 in(65.6 mm x 184.2 mm x 54.4 mm) |
Operating Environment | -20 ºC to +60 ºC (-4 ºF to +140 ºF),0 %RH to 95 %RH non-condensing |
Voltage
Voltage Range | ±160 mV, ±3.2 V, -8 V to +32 V |
Voltage Resolution | 160 mV: 0.02 mV 3.2 V: 0.004 mV 32 V: 0.004 mV |
Voltage Calibrated Accuracy | 160 mV: ±0.032 mV 3.2 mV: ±0.0032 V 32 V: ±0.02 V |
