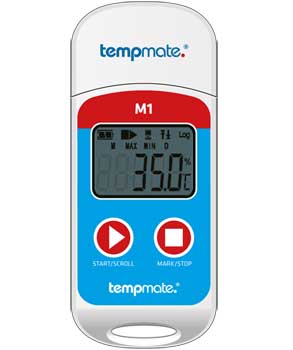

tempmate M1
Data Loggers for temperature recording with internal or external temperature sensor, mulifunctiona display and automatic PDF report generation
Manufacturer : tempmate
• Compact size and easy handling
• Integrated USB interface
• Pre-configured and ready to start directly without software and PC
• Multiple adjustable alarm limits (3 x high, 2 x Low)
• Flag Function
• Multiple recording with temporary PDF
• Automatic PDF report generation
• Multifunction LCD
• MKT value is calculated automatically
• Compatible with TempBase management software and cloud
• Readjustment of the sensor at any time through the possible software
• EN12830 compliant and GDP
• Battery replaceable by customer
• Calibration certificate as a PDF on the logger saved
• IP67 protection class
Technical Specifications |
|
| Temperature sensor: | NTC internal and external optional |
| Measuring range: | -30 ° C to + 70 ° C |
| Accuracy: | ± 0.5 ° C (at -20 ° C to + 40 ° C) |
| Resolution: | 0.1 ° C |
| Response time T90: | 11 min. |
| Data storage: | 32,000 values |
| Display: | Multifunction LCD |
| Start setting: | manually by pressing a button or automatically programmed start time |
| Recording time: | By customer freely programmable / up to 12 months |
| Interval: | 10 Sec. up to 24 hours. |
| Alarm settings: | adjustable up to 5 alarm limits |
| Alarm type: | Single alarm or cumulative |
| Battery: | CR2032 / replaceable by customer |
| Dimensions: | 80mm x 34mm x 14mm (L x W x D) |
| Weight: | 30 g |
| Protection class: | IP67 |
| System Requirements: | PDF Reader |
| Certification: | 12830, calibration certificate, CE, RoHS |
| Software: | TempBase Lite 1.0 software / free download |
| Interface to PC: | integrated USB port |
| Automatic PDF Reporting: | yes |
