Click on image to zoom

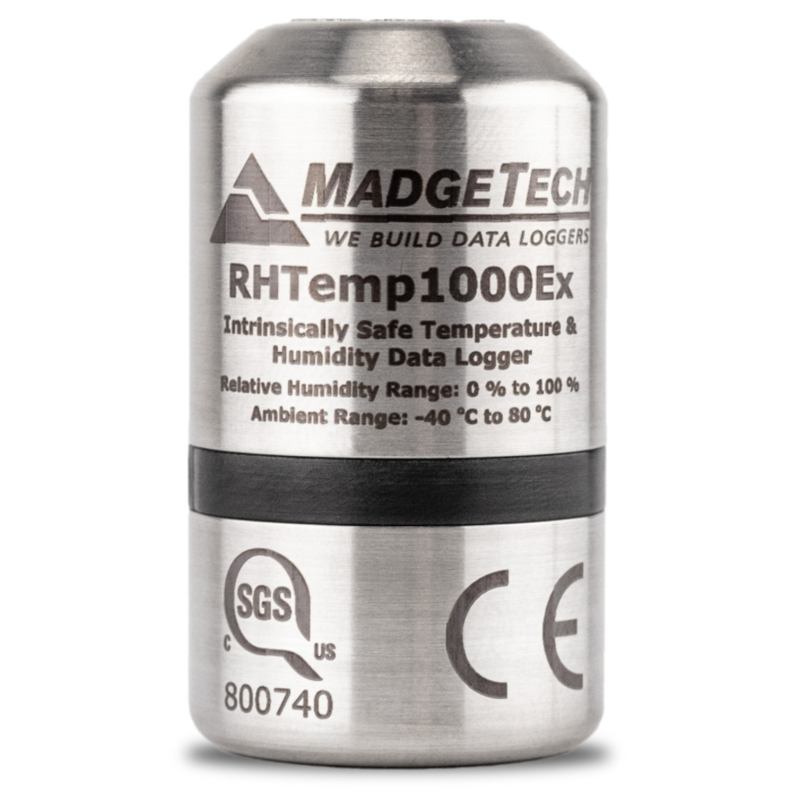

RHTemp1000Ex
Humidity and temperature data logger carrying hazardous location and intrinsically safe global certification
Manufacturer : Madgetech
The RHTemp1000Ex humidity and temperature data logger carries hazardous location and intrinsically safe global certification (ATEX, IECEx, FM 3610). Includes ISO 17025 accredited calibration certificate.
Key Features:
Compact Size
ATEX Approved
Measures Temperatures from -40 °C to 80 °C
General
| Memory | 32,767 readings |
| Reading Rate | 1 reading every 2 seconds up to 1 reading every 12 hours |
| Battery Life | 2 years typical at 15 minute reading rate |
| Material | 316 Stainless Steel/Radel |
| Dimensions | 1.7 in x 0.97 in x 0.97 in (42 mm x 24.6 mm x 24.6 mm) |
| IP Rating | (Not Rated) Caution: Do not submerge this product to retain IS rating. |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH (case properly sealed) |
| Required Interface Package | IFC400 or IFC406 |
| Approvals | CE ATEX IECEx FM 3610 |
Temperature
| Temperature Sensor | Resistance Temperature Detector (RTD) |
| Temperature Range | -40 °C to +80 °C (-40 °F to +176 °F) |
| Temperature Resolution | 0.01 °C (0.018 °F) |
| Temperature Calibrated Accuracy | ±0.5 °C (0 °C to 55 °C), ±0.9 °F (32 °F to 122 °F) |
Humidity
| Humidity Sensor | Capacitive Polymer |
| Humidity Range | 0 %RH to 100 %RH (non-condensing) |
| Humidity Resolution | 0.1 %RH |
| Humidity Calibrated Accuracy | ±3 %RH maximum |
| Humidity Specified Accuracy Range | 25 %RH to 75 %RH +20 °C to +40 °C Hysteresis Error 1 % Typical, 3% Maximum |
