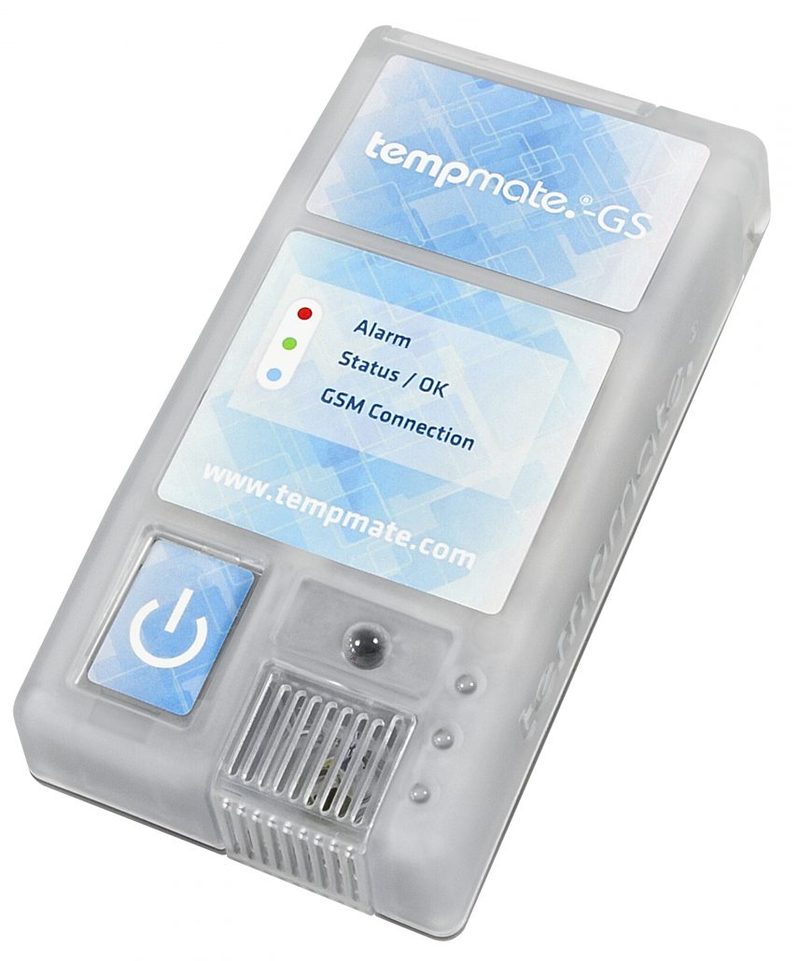

tempmate.®-GS
Single-Use Real-Time Temperature & Humidity Data logger for Cold Chain Monitoring
Manufacturer : tempmate
tempmate.®-GS loggers are specially designed for temperature and humidity monitoring in any cold chain logistics. With the GSM connectivity you are able to track your shipment and to receive a warning before a problem occurs. The reprogrammable device tempmate.®-GS can be instantly used to monitor your sensitive goods. The tempmate.®-Cloud helps you for further analysis and reporting, containing detailed information such as data curve, every single measurement as a table and statistical information.
Data logger type Single-Use GSM data logger
Temperature range -40 °C to 90 °C
Temperature Accuracy ±0.2°C(–40°C/+90°C);±0.3%
Temperature Resolution <0.1°C
Data Storage capacity Max 15600 records
Humidity 0 to 100%rH / Accuracy [0..90%rH]
< ±2.5%, [90%..100%] < ±3.5%
Resolution Humidity 1%
Ambient Light 0 to 16000lx / Accuracy < 10%
Resolution Ambient Light 1lx
Shelf Life / Battery
2 Years at -25°C to +35°C / 2x CR17450
Recording Interval 10 min Standard
Recording Duration 90 Days in Standard
Startup Mode Button Stop Mode Button
Start Delay Possible 1 Minute to 48 Hours
Protection Class IP67 / NEMA 6
Dimensions 115/61/26 mm (l/w/h)
Weight 165g
Certifications CE, EN12830, EMC, RoHS
Validation Certificate available as PDF in the Cloud
Software tempbase.®-C Cloud
Report Generation Readable in cloud
Password Protecion Cloud Password Protection
Data Transfer GSM Quad Band
Location GSM Localization
G Sensor 3-axis 6D-/4D- orientation detection/
±16g / Accuracy: < ±2%
Alarm Configuration Up to 6 thresholds, Alarm delay programmable
Programmable Via Cloud
Alarm Type by Mail / Visual (Cloud)
Storage Temperature -25°C to +35°C (room temperature suggested)
Case Material Polycarbonate
