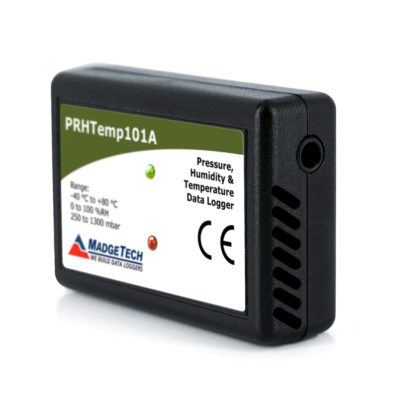

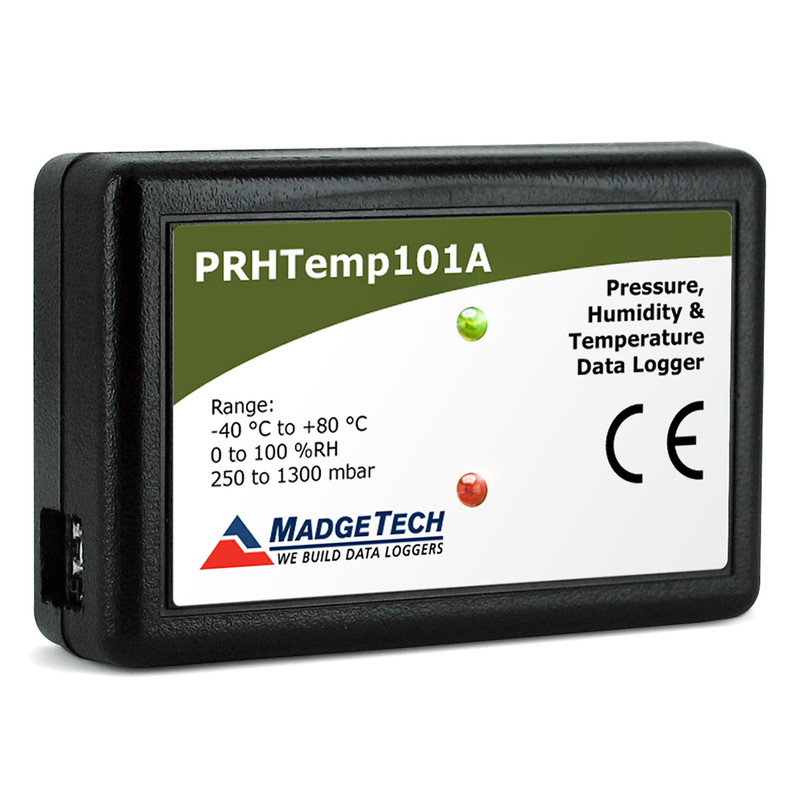

PRHTemp101A
Pressure, Temperature and Humidity Data Logger
Manufacturer : Madgetech
TECHNICAL SPECIFICATIONS
General
| Memory | 688,128 readings (all channels enabled) |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Baud Rate | 115,200 |
| LED Indicators | Red & Green |
| Battery Life | 10 years typical (at a 15 minute reading rate) |
| Material | ABS plastic |
| Dimensions | 1.4 in x 2.2 in x 0.6 in (36 mm x 56 mm x 16 mm) |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing, 0.002 PSIA to 100 PSIA |
| Required Interface Package | IFC200 |
| Approvals | CE |
Temperature
| Internal Channel Temperature Sensor | Resistance Temperature Detector (RTD) |
| Internal Channel Temperature Range | -40 °C to +80 °C (-40 °F to +176 °F) |
| Internal Channel Temperature Resolution | 0.01 °C (0.018 °F) |
| Internal Channel Temperature Calibrated Accuracy | ±0.5 °C (±0.9 °F) (+5 °C to +55 °C / +41 °F to +131 °F) |
Humidity
| Humidity Sensor | Capactive Polymer |
| Humidity Range | 0 %RH to 95 %RH |
| Humidity Resolution | 0.1 %RH |
| Humidity Calibrated Accuracy | 3.0 %RH (+5 °C to +55 °C / +41 °F to +131 °F) |
Pressure
| Pressure Sensor | Piezoresistive |
| Pressure Range | 250 mbar to 1300 mbar |
| Pressure Resolution | 0.02 mbar |
| Pressure Calibrated Accuracy | 10 mbar (+5 °C to +55 °C / +41 °F to +131 °F) |
