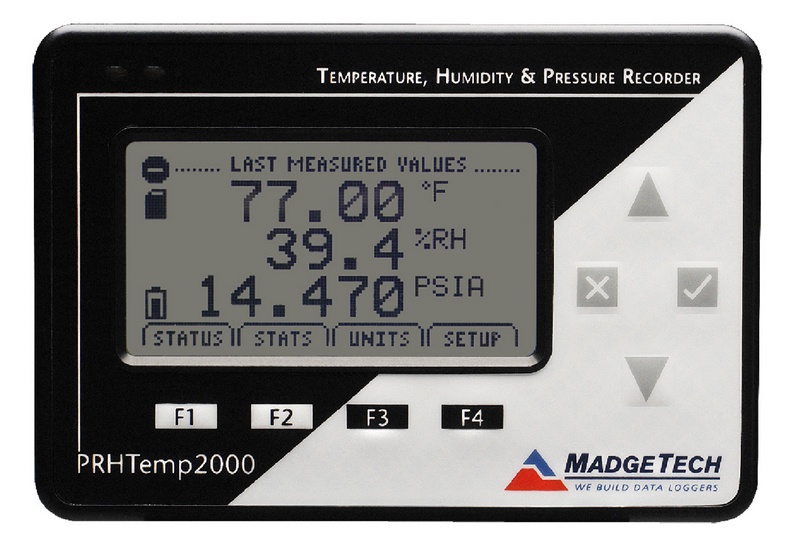

PRHTemp2000
Pressure, Humidity & Temperature Data Logger with LCD Display
Manufacturer : Madgetech
TECHNICAL SPECIFICATIONS
TEMPERATURE
| Temperature Sensor | Internal semiconductor |
|---|---|
| Temperature Range | -20 to +60°C |
| Temperature Resolution | 0.1°C |
| Temperature Calibrated Accuracy | ±0.5°C (0 to +50°C) |
HUMIDITY
| Humidity Sensor | Internal semiconductor |
|---|---|
| Humidity Range | 0~95%RH |
| Humidity Resolution | 0.1%RH |
| Humidity Calibrated Accuracy | ±3%RH (+10 to +40°C 10 to 80%RH) (±2%RH typical @ 25°C) |
PRESSURE
| Pressure Sensor | Semiconductor (strain gauge) |
|---|---|
| Pressure Range | 0~30 PSIA |
| Pressure Resolution | 0.002 PSI |
| Pressure Calibrated Accuracy | 1% FSR; 0.25% at 25°C |
GENERAL
| Memory | 87,381/channel |
|---|---|
| Reading Rate | 2 seconds up to 24 hours |
| Baud Rate | 115,200 |
| Battery Life | 1 year battery life at 1 min reading rate with display off. 30 days typical with continuous LCD and no backlight usage. Optional AC Adapter available. |
| Material | Black anodized aluminum |
| Dimensions | 4.8. x 3.3. x 1.25" (122mm x 84mm x 32mm) |
| Operating Environment | -20~+60°C, 0~95%RH non-condensing |
| Required Interface Package | IFC200 |
| Approvals | CE |
