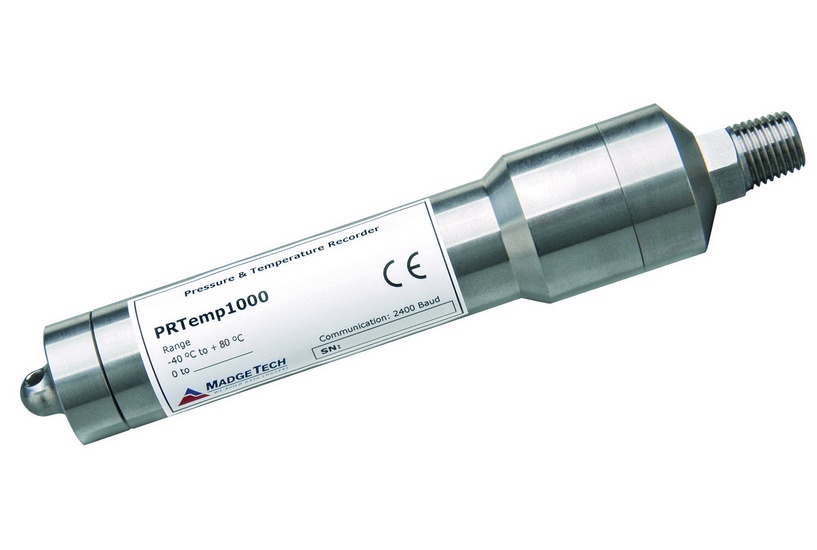

PRTemp1000
Rugged Pressure and Temperature Data Logger with ¼” NPT Fitting and Stainless Steel Enclosure
Manufacturer : Madgetech
TECHNICAL SPECIFICATIONS
TEMPERATURE
| Temperature Sensor | Internal semiconductor |
|---|---|
| Temperature Range | -40 to +80°C |
| Temperature Resolution | 0.1°C |
| Temperature Calibrated Accuracy | ±0.5°C |
PRESSURE
| Pressure Range | 0 to 30, 100, 300, 500 PSIA/G; 1000 and 5000 PSIA |
|---|---|
| Pressure Resolution | See Specifications Sheet |
| Pressure Calibrated Accuracy | 2% FSR, 0.25% at 25°C typical |
GENERAL
| Memory | 16,383/channel |
|---|---|
| Reading Rate | 2 seconds up to 12 hours |
| Baud Rate | 2,400 |
| Battery Life | 1 year |
| Material | 303 stainless steel |
| Dimensions | 6.4" x 1.25" dia. (163mm x 32mm) |
| Submersible | Yes |
| Operating Environment | -40~+80°C, 0~100%RH |
| Required Interface Package | IFC110 or IFC200 |
| Approvals | CE |
