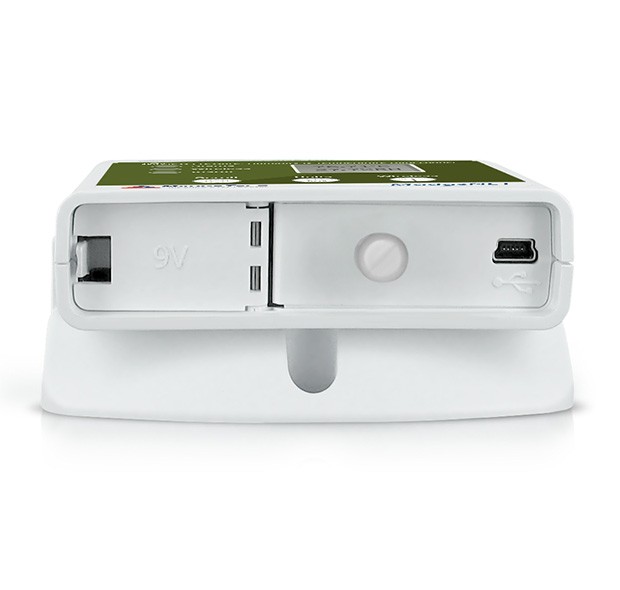

RFPRHTemp2000A
Wireless Pressure, Humidity and Temperature Data Logger
Manufacturer : Madgetech
TEMPERATURE
| Internal Channel Temperature Sensor | Resistance Temperature Detector (RTD) |
|---|---|
| Internal Channel Temperature Range | -20 °C to +60 °C (-4 °F to +140 °F) |
| Internal Channel Temperature Resolution | 0.01 °C (0.018 °F) |
| Internal Channel Temperature Calibrated Accuracy | ±0.5 °C (+5 °C to +55 °C) |
HUMIDITY
| Humidity Sensor | Relative Humidity Sensor |
|---|---|
| Humidity Range | 0 %RH to 95 %RH |
| Humidity Resolution | 0.1 %RH |
| Humidity Calibrated Accuracy | ±3.0 %RH, ±2.0 %RH typical @ 25 °C (10 to 90 %RH; +5 °C to +55 °C) |
PRESSURE
| Pressure Sensor | Silicon |
|---|---|
| Pressure Range | 250 mbar to 1300 mbar |
| Pressure Resolution | 0.02 mbar |
| Pressure Calibrated Accuracy | 10 mbar (+5 °C to +55 °C) |
WIRELESS
| RF Baud Rate | 250,000 |
|---|---|
| Output Power | +0 dBm typical |
| Receiver Sensitivity | -95 dBm typical |
| Typical outdoors Line of sight | Up to 2000 ft |
| Typical Indoors line of sight | Up to 500 ft |
GENERAL
| Memory | 10,752 readings per channel |
|---|---|
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Baud Rate | 250,000 |
| LED Indicators | Green, Blue & Red |
| Battery Life | 5 years typical at a 15 minute reading rate |
| Material | ABS plastic |
| Dimensions | 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - Data logger only |
| IP Rating | IP22 |
| Operating Environment | -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing, 0.002 PSIA to 100 PSIA |
| Required Interface Package | RFC1000 |
| Approvals | US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE) |
