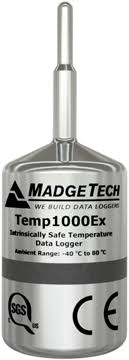

Temp1000Ex
Temperature data logger carrying hazardous location and intrinsically safe global certification (ATEX, IECEx, FM 3610)
Manufacturer : Madgetech
The Temp1000Ex is a compact, temperature data logger that carries hazardous location and intrinsically safe global certification (ATEX, IECEx, FM 3610).
This one of a kind data logger is certified intrinsically safe for the following:
Electrical Protection Concepts: ISO/IEC: 60079-11 Ex ia – Ex ic, Intrinsic Safety Zones 0-2
Equipment Protection Level: Ga – Gc, Zones 0-2
Gas Group: IIC
Temperature Class: T4
The Temp1000Ex measures and records temperatures from -40 °C to +80 °C (-40 °F to +176 °F) with an accuracy of ±0.5 °C (0 °C to ±50 °C) and ±0.9 °F (32 °F to 122 °F). The Temp1000Ex can store up to 32,767 time and date stamped readings, and is available with either a flush bottom or key ring end cap.
The Temp1000Ex is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
General
| Memory | 32,767 readings |
| Reading Rate | 1 reading every 2 seconds to 1 reading every 12 hours |
| Battery Life | 2 year typical at 15 minute reading rate |
| Material | 316 Stainless Steel/Radel |
| Dimensions | 2.65 in x .97 in dia. (67.3 mm x 24.6 mm dia.) |
| IP Rating | (Not Rated) Caution: Do not submerge this product to retain IS rating. |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH (case properly sealed) |
| Required Interface Package | IFC400 or IFC406 |
| Approvals | CE ATEX IECEx FM 3610 |
Temperature
| Temperature Sensor | Resistance Temperature Detector (RTD) |
| Temperature Range | -40 °C to +80 °C (-40 °F to +176 °F) |
| Temperature Resolution | 0.01 °C (0.018 °F) |
| Temperature Calibrated Accuracy | ±0.5 °C (0 °C to +50 °C), ±0.9 °F (32 °F to 122 °F) |
