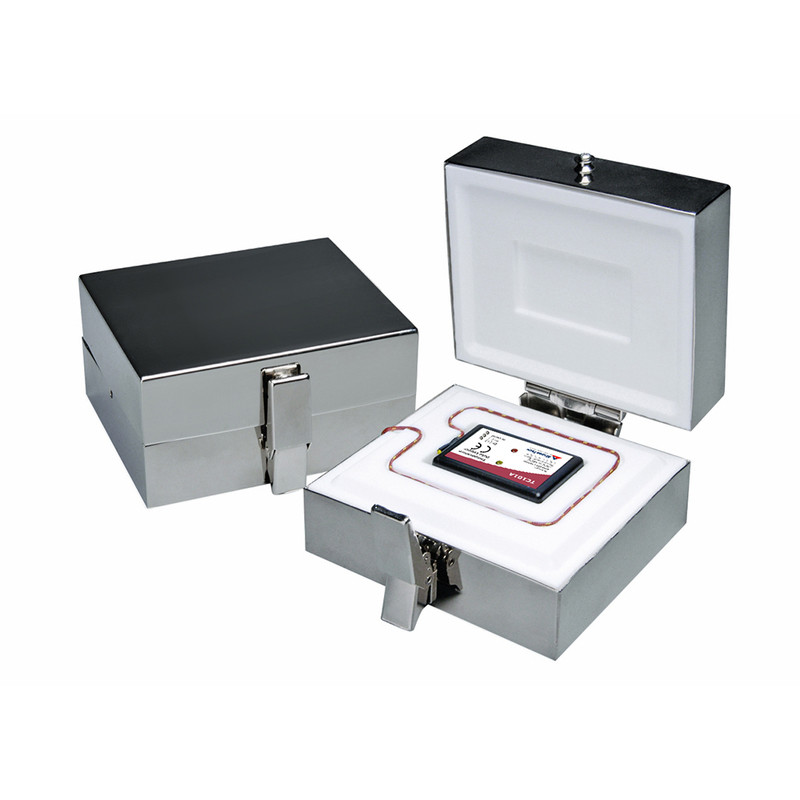

ThermoVault
Thermocouple based temperature data logger used for the thermal profiling of ovens
Manufacturer : Madgetech
General
| Memory | 500,000 readings; software configurable memory wrap 250,000 readings in multiple start/stop mode |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Baud Rate | 115,200 |
| Cold Junction Compensation | Automatic |
| Channels | 1 Internal & 1 Remote |
| LED Indicators | Red & Green |
| Battery Life | 10 Years typical at a 15 minute reading rate |
| Material | 304 stainless steel w/ PTFE insulation |
| Dimensions | 5.1 in x 4.5 in x 2.5 in (129 mm x 113 mm x 64 mm) |
| Operating Environment | See specifications sheet, 0 %RH to 95 %RH non-condensing |
| Required Interface Package | IFC200 |
Temperature
| Internal Channel Temperature Sensor | Semiconductor |
| Internal Channel Temperature Resolution | 0.1 °C (0.18 °F) |
| Internal Channel Temperature Calibrated Accuracy | ±0.25 °C |
| Remote Channel Temperature Sensor | Thermocouple Types J, K, T, E, R, S, B ,N |
| Remote Channel Temperature Range | Thermocouple Dependent |
| Remote Channel Temperature Resolution | Thermocouple Dependent |
| Remote Channel Temperature Calibrated Accuracy | Thermocouple Dependent |
