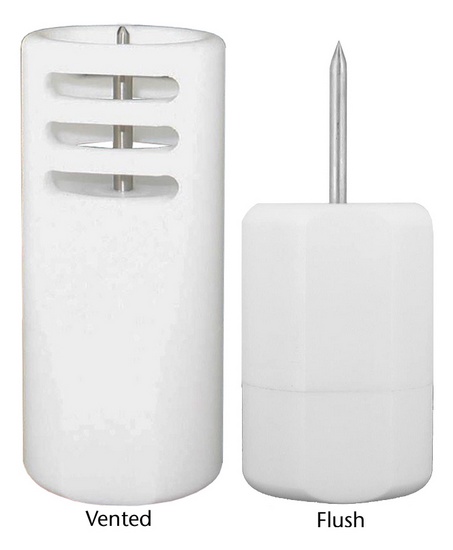

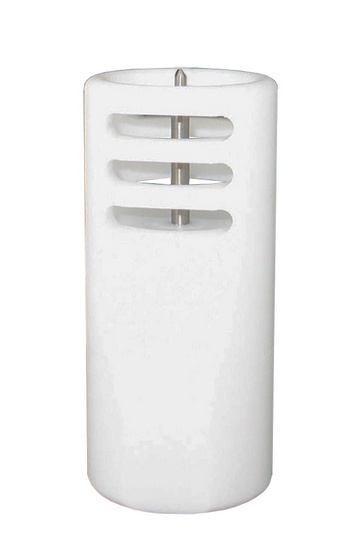

Extreme High Temperature Data Logger with Thermal Shield capable of withstanding temperatures of up to 250°C

TECHNICAL SPECIFICATIONS

TEMPERATURE

Temperature Resolution	0.01°C (0.02°F)
Temperature Calibrated Accuracy	±0.1°C/±0.18°F (20°C to +140°C/68°F to +284°F) ±0.3°C/±0.54°F (-20°C to +19.99°C/-4°F to +67.98°F) ±0.4°C/±0.72ºF (-40°C to -20.01°C/-40°F to +-4.02°F)
Probe Temperature Range	-200 to +260°C

GENERAL

Memory

32,700

Reading Rate

1 second up to once every 24 hours

Baud Rate

125,000

Battery Life

1 year typical (1 minute reading rate at 25°C/77°F)

Dimensions

HiTemp140-1 Body: 1.55” x 0.97” dia. (40mm x 25mm dia.)
Probe: 1”x 0.125” dia. (0.188” transitional dia.)
25mm x 3.2mm dia. (4.8mm transitional dia.)

Body (for 2”, 5.25”, 7”): 1.75” x 0.97” dia. (45mm x 25mm dia.)

HiTemp140-2 : 2.0” x 0.188” dia. (51mm x 4.8mm)

HiTemp140-2-TD: 2.0” x 0.125” dia. (0.188” transitional dia.)
(51mm x 3.2mm dia. (4.8mm transitional dia.)

HiTemp140-5.25: 5.25” x .188” (134mm x 4.8mm)

HiTemp140-5.25-TD: 5.25” x 0.125” dia. (0.188” transitional dia.)
(134mm x 3.2mm dia. (4.8mm transitional dia.)

HiTemp140-7: 7.0” x 0.188” dia. (178mm x 4.8mm dia.)

IP Rating

IP68

Submersible

Yes

Operating Environment

-200° to +250°C/-328°F to +482°F (Time limited, see specifications sheet)
0 to 100% RH

Approvals
