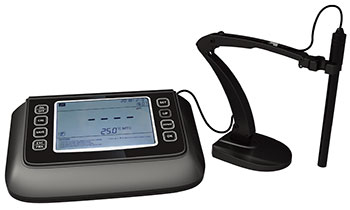

S-611 Series Conductivity Meter
Conductivity meters Series S
Manufacturer : Peak Instruments
Features:
●6.5 inch LCD screen which is intuitive and can show more parameters. Humanized design of operating interface makes operations simpler.
●Omron long lasting and light touch panel can be used more than 100,000 times.
● Automatice calibration, auto temperature compensation, data storage, USB data export, clock, wireless printing, function setup, smart self-diagnosis and other intelligent functions.
●Built-in big memory can store 500 sets of test data which can be saved and transferred to USB flash drive and opened with Excel, very easy and convenient for edit.
●Auto recognition of eight kinds of standard conductivity solution and there are two series of standard solution for option: USA series and China series.
● Adopt advanced conductivity measurement technology, one point calibration of conductivity electrode can meet the measuring accuracy requirements for test 0.5μ S/cm ~ 200mS/cm.
● Able to switch between conductivity, TDS, salinity and resistivity. Multinomial calculation for TDS and salinity to ensure the conversion precision of the full scale.
●With optional Bluetooth module and support wireless Bluetooth printing to make operations much easier for users. Optional data transmission to cell phone via wireless Bluetooth.
● IP54 dustproof and waterproof housing
Specifications
|
Model |
S-611H |
S-611L |
S-611P |
S-611C |
|
Display |
6.5 inch LCD screen |
6.5 inch LCD screen |
6.5 inch LCD screen |
6.5inch LCD screen |
|
Parameters |
conductivity, resistivity, TDS, salinity, temperature |
conductivity, resistivity, TDS, salinity, temperature |
conductivity, resistivity, TDS, salinity, temperature |
conductivity, resistivity, TDS, salinity, temperature |
|
Conductivity measuring range |
(0.00~20.00) μS/cm (20.0~200.0)μS/cm (200~2000) μS/cm (2.00~20.00) mS/cm (20.0~200.0) mS/cm (200~2000) mS/cm (K=10) |
(0.00~20.00) μS/cm (20.0~200.0)μS/cm (200~2000) μS/cm (2.00~20.00) mS/cm (20.0~200.0) mS/cm |
(0.00~20.00) μS/cm (20.0~200.0)μS/cm (200~2000) μS/cm (2.00~20.00) mS/cm (20.0~200.0) mS/cm (200~2000) mS/cm (K=10) |
(0.00~20.00) μS/cm (20.0~200.0)μS/cm (200~2000) μS/cm (2.00~20.00) mS/cm (20.0~200.0) mS/cm (200~2000) mS/cm (K=10) |
|
Conductivity resolution |
0.01/0.1/1 μS/cm 0.01/0.1/1 mS/cm |
0.01/0.1/1μS/cm 0.01/0.1mS/cm |
0.01/0.1/1 μS/cm 0.01/0.1/1 mS/cm |
0.01/0.1/1 μS/cm 0.01/0.1/1 mS/cm |
|
Conductivity Accuracy |
Electrode: ±0.5%FS Instrument: ±0.8%FS |
Electrode: ±1.0%FS Instrument:±1.50%FS |
Electrode: ±0.5%FS Instrument: ±0.8%FS |
Electrode: ±0.5%FS Instrument: ±0.8%FS |
|
Resistivity measuring range |
0 ... 100 MΩ·cm |
0 ... 100 MΩ·cm |
0 ... 100 MΩ·cm |
0 ... 100 MΩ·cm |
|
TDS |
0.00mg/L~100g/L |
0.00mg/L ~100 g/L |
0.00mg/L~100g/L |
0.00mg/L~100g/L |
|
Salinity |
0~100 ppt |
0~100 ppt |
0~100 ppt |
0~100 ppt |
|
Temp measuring range |
(0~100)℃ |
(0~100)℃ |
(0~100)℃ |
(0~100)℃ |
|
Temp resolution |
0.1℃ |
0.1℃ |
0.1℃ |
0.1℃ |
|
Temp accuracy |
±0.5℃ |
±0.5℃ |
±0.5℃ |
±0.5℃ |
|
Data storage |
500 sets |
300 sets |
500 sets |
500 sets |
|
Communication |
USB, wireless Bluetooth |
USB, wireless Bluetooth |
USB, wireless Bluetooth |
USB, wireless Bluetooth |
|
Working conditions |
Temperature: 5-40° Humidity: 5-85% |
Temperature: 5-40° Humidity: 5-85% |
Temperature: 5-40° Humidity: 5-85% |
Temperature:5-40° Humidity: 5-85% |
|
Power |
12V1A |
12V1A |
12V1A |
12V1A |
|
Size & Weight |
270×170×70mm/600g |
270×170×70mm/600g |
270×170×70mm/600g |
270×170×70mm/600g |
Standard Configuration:
1. S-611 benchtop conductivity meter 1 unit
2. Conductivity electrode (subject to different models) 1 pc
3. Rotary electrode holder 1 pc
4. 12V power adapter(for instrument) 1 pc
5. Instruction manual in USB 1 copy
