EMC-11-UV

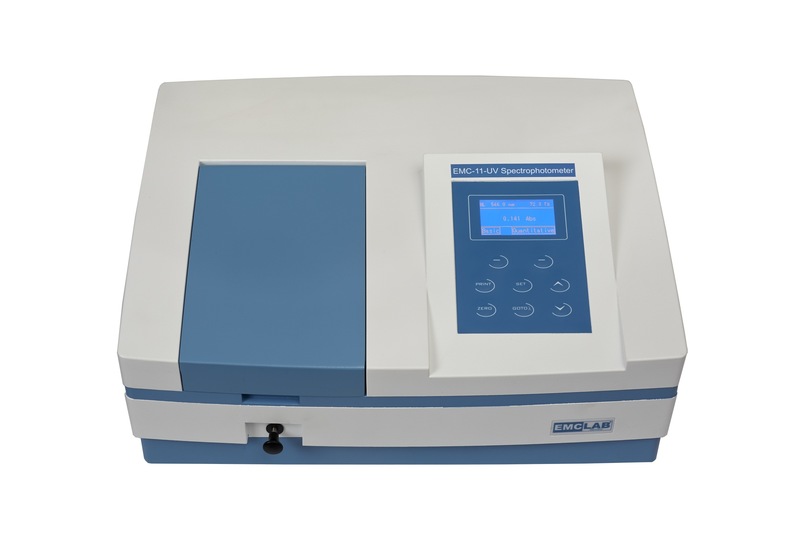

UV/Vis spectrophotometer
Manufacturer : EmcLab
EMC-11-UV spectrophotometer is the ideal instrument for education and QC laboratories. Using your standard sample solutions, you can get a standard curve on the large LCD screen. It is widely used in colleges and enterprises for general quantitative analysis and experiments.
Features:
- Large LCD screen (128*64 Dots)
- Can display total 50 groups of data, 3 groups per screen. Can display standard curve and the curve equation
- System can also save the test results. Total groups of data and 200 standard curves can be saved; it is convenient for check and reload.
- Data can be restored after a sudden power cut
- Auto setting wavelength
- Tungsten lamp & Deuterium lamp can be turned on/off individually to extend lifetime
- Pre-aligned design makes it convenient to change lamps
- Large sample compartment, it can be accommodate 5-100 mm path length cuvettes with optional holders. A variety of optional accessories are available
- The optional application software M. Wave Professional provides complete control of the spectrophotometer through the Built-in USB port. You can achieve the following functions: I. Quantitative II. Kinetics III. Wavelength Scan IV. Multi Wavelength V. DNA/Protein
| Model | EMC-11UV |
| Wavelength Range | 200-1000 nm |
| Spectral Bandwidth | 4 nm |
| Optical System | Singe Beam, grating 1200 lines/mm |
| Wavelength Accuracy | ±2 nm |
| Wavelength Repeatability | 1 nm |
| Photometric Accuracy | <±0.5 % T or ±0.003A@1A |
| Photometric Range | 0-200 % T, -0.3 - 3A, 0-9999 Conc. |
| Stray Light | 0.3 % T |
| Stability | ±0.002A/h @500 nm |
| Detector | Silicon Photodiode |
| Standard Cell Holder | 4-position 10 mm cell changer |
| Sample compartment | Standard 10 mm path length cuvette |
| Light Source | Tungsten & Deuterium lamp |
| Output | USB Port & Parallel Port (Printer) |
| Power Requirement | AC 110/220V 50/60 Hz |
| Dimensions (LxWxH) | 489 x 387 x 180 mm |
| Weight | 14 kg |
