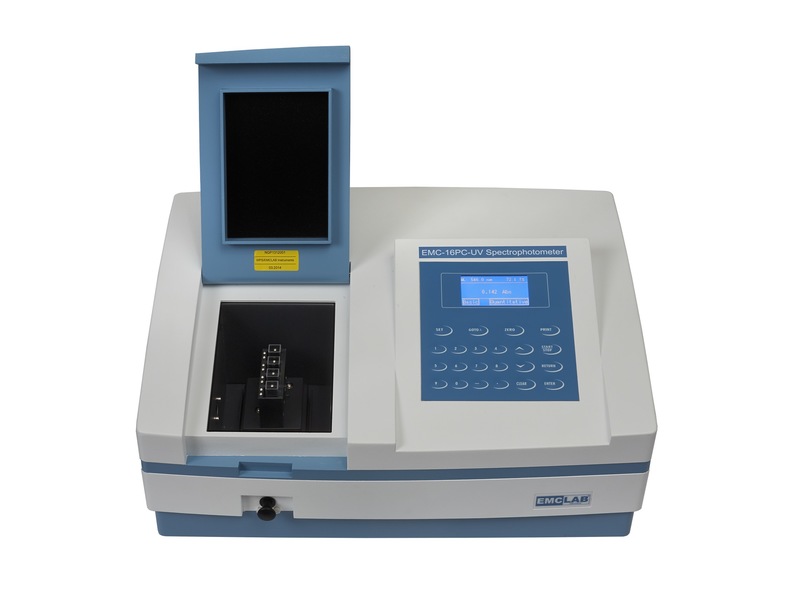

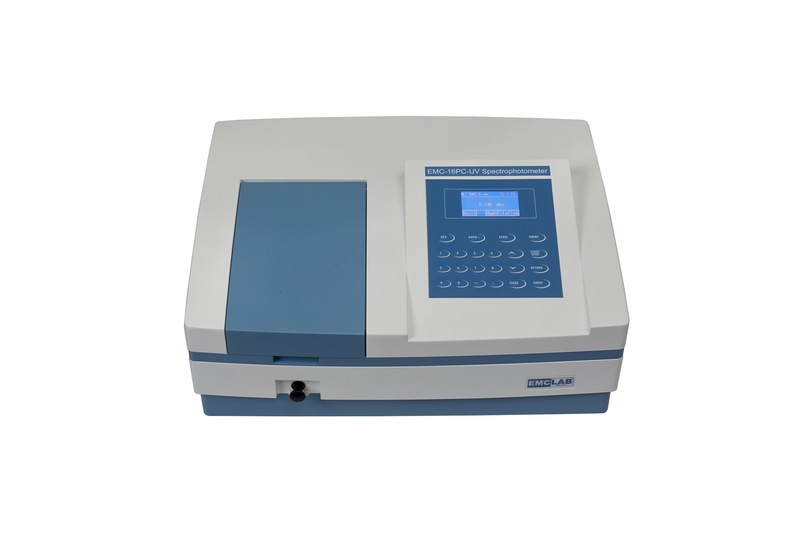

EMC-16 series
UV/Vis spectrophotometer
Manufacturer : EmcLab
EMC-16 series are simple-to-use instruments with advanced performance, its stray light is only 0.05%T. The local stand-alone software provides functions of Photometry, Quantitative Test, Kinetics and System Utilities functions.
Features:
- Large LCD screen (128*64 Dots)
- System can also save the test results. Total 200 groups of data 200 standard curves can be saved in the RAM. Convenient for check and reload.
- Data can be restored after a sudden power cut
- Auto setting wavelength
- Tungsten lamp & Deuterium lamp can be turned on/off individually to extend lifetime
- Pre-aligned design makes it convenient to change lamps
- Large sample compartment, it can be accommodate 5-100 mm path length cuvettes with optional holders. A variety of optional accessories are available
- The application software M. Wave Professional provides complete control of the spectrophotometer from a computer through the Built-in USB port.
- It can expand to the following functions: I. Quantitative, II. Kinetics, III. Wavelength Scan, IV. Multi Wavelength, V. DNA/Protein
| Model | EMC-16PC-V | EMC-16PC-UV |
| Wavelength Range | 320-1100 nm | 190-1100 nm |
| Spectral Bandwidth | 4 nm | |
| Optical System | Singe Beam, grating 1200 lines/mm | |
| Wavelength Accuracy | ±0.5 nm | |
| Wavelength Repeatability | 0.3 nm | |
| Photometric Accuracy | <±0.5 % T or ±0.003A@1A | |
| Photometric Range | 0-200 % T, -0.3 - 3A, 0-9999 Conc. | |
| Stray Light | ±0.05 % T@360 nm | ±0.05 % T@260, 360 nm |
| Stability | ±0.002A/h @500 nm | |
| Display | Graphic LCD (128+64 dots) | |
| Keyboard | 22 Membrane keypad | |
| Standard Cell Holder | 4-position 10 mm cell changer | |
| Sample compartment | Standard 10 mm path length cuvette | |
| Light Source | Tungsten lamp | Tungsten & Deuterium lamp |
| Output | USB Port & Parallel Port (Printer) | |
| Power Requirement | AC 110/220V 50/60 Hz | |
| Dimensions (LxWxH) | 470 x 373 x 187 mm | |
| Weight | 12 kg | 14 kg |
