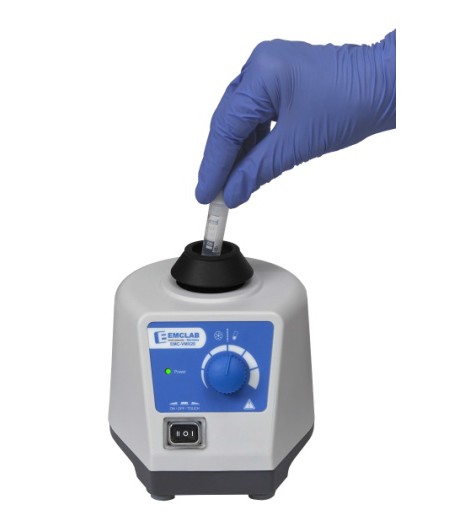

EMC-VMX
Vortex Mixer
Manufacturer : EmcLab
The Vortex mixer widely used in life science, physical and chemical analysis fields for vigorous re-suspension of cells or chemical pellets in tubes up to 15 ml.
Features:
- Touch and continuous operations
- Available with fixed or adjustable speed range
- Specially designed vacuum suction feet hold to the work surface and prevent the unit from movement
- Aluminium cast base avoids unnecessary "walking"
- EMC-VMX20 used for various mixing applications with optional adapters, handles up to 48 tubes
| Model |
EMC-VMX10 Fixed speed |
EMC-VMX20 Adjustable speed |
| Art. No. | EMC-20021009 | EMC-20021007 |
| Voltage [VAC] | 110-120/220-230 | 110-120/220-230 |
| Frequency [Hz] | 50/60 | 50/60 |
| Power [W] | 60 | 60 |
| Mixing motion | Orbital | Orbital |
| Orbital diameter [mm] | 4 | 4 |
| Motor rating input [W] | 58 | 58 |
| Motor rating output [W] | 10 | 10 |
| Permissible on time [%] | 30 | 30 |
| Speed range [rpm] | 2500 | 0-2500 |
| Speed display | Scale | |
| Run type | Continuous / Touch operation | Continuous / Touch operation |
| Dimensions [WxHxD mm] | 127x130x160 | 127x130x160 |
| Weight [kg] | 3,5 | 3,5 |
| Permission ambient temperature [C] | 5-40 | 5-40 |
| Permissible relative humidity [%] | 80 | 80 |
| Protection class acc. DIN EN60529 | IP21 | IP21 |
