Click on image to zoom

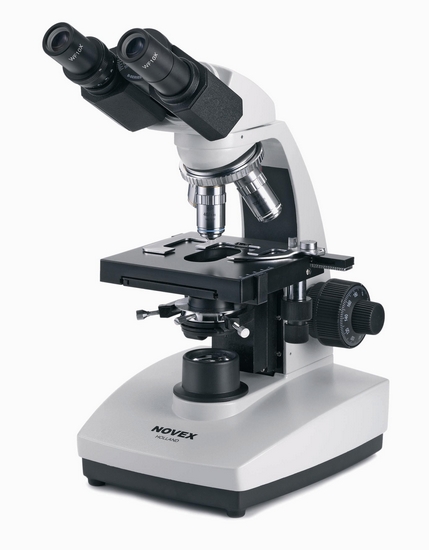

Novex B Series
Microscopes for Biomedical Sciences
Manufacturer : Euromex
TECHNICAL SPECIFICATIONS
The fully equipped B- series for biomedical sciences are commonly used for general lab research, in secondary and higher education and veterinarians. Next to the ergonomics the functionality of these microscopes is very high due to:
- Standard HWF 10x/18 mm or HWF 10x/20 mm eyepieces
- Semi-Plan or Plan achromatic 4x 10x S40x S100x bright field objectives
- Semi-Plan or Plan Phase achromatic 10x 20x S40x S100x objectives
- ICS - Infinity Corrected System achromatic- 4x 10x S40x S100x objectives
- Monocular, binocular of trinocular microscope head
- Abbe condenser N.A. 1.25 in centrable holder, Zernike Phase disk or Phase slide condenser. With iris diaphragm and filter holder with neutral filter and blue filter. Vertical adjustment by means of control knob
- Cardioid oil-immersion condensor for darkfield contrast
- Large mechanical stage, 120 x 135 mm, ball-bearing mechanism, with X and Y adjustment 75 x 35 mm. Optionally equipped with heating elements and PID controller
- Built-in adjustable 20 watt halogen or LED illuminator. The LED versions offer 50 hours of cordless use
The models 86.010 to 86.141 are equipped with either halogen or LED illumination.
The models 86.310 to 86.391 are equipped with a Zernike Phase Contrast condenser and semi-Plan or Plan phase objectives.
The models 86.410 to 86.491 are equipped with semi-Plan or Plan bright field objectives and a Plan Phase 40x objective.
