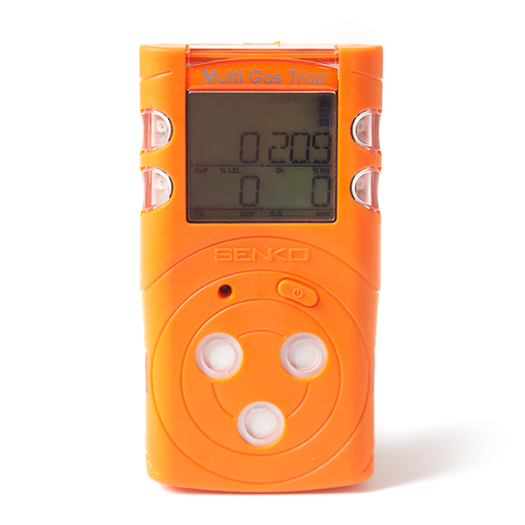

The MGT portable multi gas detector is used for detection of Flammable gases, oxygen depletion & toxic gases, for meeting the safety monitoring requirements of a broad range of different industries and utilities.
The MGT multi gas detector is utilized for detection and monitoring of gas Concentration of 4 gases at a time namely Oxygen, Carbon Monoxide, Hydrogen Sulphide and combustible gas simultaneously on the LCD display of the instrument, in real time, to ensure that your workers feel safe and that you maintain safety compliance. When the measurement of concentration by inhalation of gas is required, an optional sampling pump can be used to measure the gas concentration and leakage at pertinent place.
Oxygen is displayed in %vol, combustible gases in %LEL and H2S, CO2 in PPM unit.
FEATURES
• Continuous display of real time gas concentration; when levels exceed threshold, display icons as below will blink and the instrument will alert the operator.
• LOW: minimum gas concentration detected by the device
• HIGH: maximum concentration detected by the device
• TWA (Time Weight Average): Acceptable hourly average exposure levels of the toxic gases for the last eight hours
• STEL (Short Term Exposure Limit): Acceptable average exposure levels of the toxic gases for the last 15 minutes provide a triple ALERT
• Alert options: Easy and simple to operate, the device provides a triple ALERT by Audio Buzzer Alarm, Bright LED light and Vibration when the concentration exceeds the safety gas levels in addition, provides alerts an readings on LCD display
• Data logging of up to 30 events. Data log records the operation status of every second
• Self-test: instrument contains a self-test feature which allows the operator to self-test the instrument motor, buzzer, LED, LCD, memory etc. prior use.
|
Measure Gas
|
Combustible
|
O2
|
CO
|
H2S
|
|
Detecting Method
|
Diffusion / Sampling(with Sampling Pump(option))
|
|
Measure Mechanism
|
Catalytic (MGT-P) NDIR (MGT-N)
|
Electrochemical
|
Electrochemical
|
Electrochemical
|
|
Range
|
0~100 %LEL
|
0~30 %vol
|
0~500 ppm
|
0~100 ppm
|
|
Sensor life
|
> 5 years
|
< 2 years
|
> 2 years
|
> 2 years
|
|
Response Time
|
< 15sec/90%scale
|
< 15sec/90%scale
|
< 30sec/90%scale
|
< 30sec/90%scale
|
|
Accuracy
|
± 3%/ Full Scale
|
|
Resolution
|
1%LEL
|
0.1 %vo
|
1 ppm
|
0.1 ppm
|
|
Operation
|
Push Button Key
|
|
Alarm Via
Visual
Audio
|
LCD backlit display, Indicator LED
Buzzer alarm (dB at 10 CMS), Vibration
|
|
Data Logging
|
30 Events (FIFO), Calibration log, Bump test log
|
|
Temp & Humidity
|
-20˚C ~ +45˚C, 10 to 95% RH(Non-condensing)
|
|
Battery Type
|
Manufacturer: SAMSUNG SDI, Product Name: ICP103450S, Type: Lithium-Ion Charger Nominal Voltage : 3.7V , Nominal Capacity: 2000mAh , Max Charging Voltage: 6.3V
|
|
Battery Duration
|
(MGT-P : 24 Hours, MGT-N : 2 Months)
|
|
Case
|
Rubber-base PC Case
|
|
Size & Weight
|
(W x D x H) 60 x 40 x 118mm, 240 g
|
|
Options
|
SP-PUMP101 (Sampling pump), SENKO IR-LINK, Docking-Station
|
|
Certification
|
MGT-P : Ex d ia IIC T4, IP 67, MGT-N : Ex ia IIC T4, IP 67, CE
|
|
User configurable
|
Bump test interval, calibration interval, initial setting concentration levels for calibration (*if IR Link is purchased)
|
|
