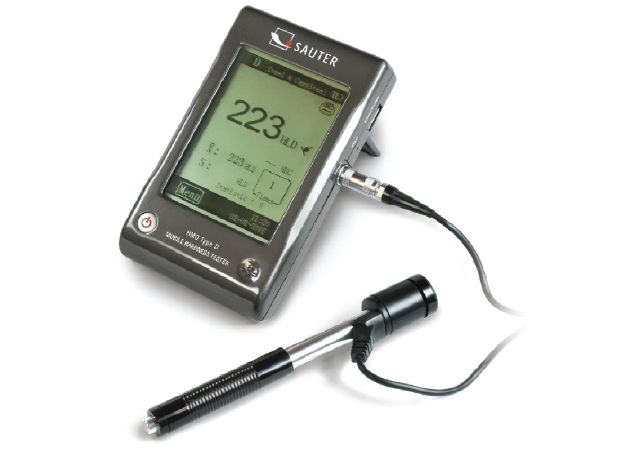

HMO
Advanced features for professional applications
Manufacturer : Sauter
- Innovative touchscreen
- Automatic recognition of the impact (rebound) sensor connected to the HMO.
- Mobility: In comparison with stationary table-top devices and testing devices with an internal sensor, using the SAUTER HMO. offers the highest level of mobility and flexibility
- All measurement directions possible (360°) thanks to an automatic compensation function
- Data output to PC: USB output included
- Wireless IR printer included for on-site printing of measurement protocols (battery operated)
- Standard block and support ring for curved surfaces (Radius > 10 mm)
- Support rings for bended testing samples available on request, on request
- Delivered in a hard carrying case
- Internal memory for up to 800 data groups, with up to 99 values per group forming the average value of the group
- Mini statistics function: Displays the measure value, the average value, the difference between the maximum and minimum values, date and time
- Measurement value display: Rockwell (B & C), Vickers (HV), Brinell (HB), Shore (HSD), Leeb (HL), tensile strength (MPa)
- Automatic unit conversion: The measuring result is automatically converted into all specified hardness units
- Precision: 1 % 800 HLD (± 6 HLD)
- Measuring range tensile strength: 375 - 2639 MPa (steel)
- Min. sample weight on a solid and stable support:
- Sensor D + DC: 3 kg
- Sensor G: 15 kg
- Minimum sample thickness:
- Sensor D + DC: 8 mm
- Sensor G: 10 mm
- Minimum sample radius (concave/convex): 50 mm (with support ring: 10 mm)
