TH-ICH

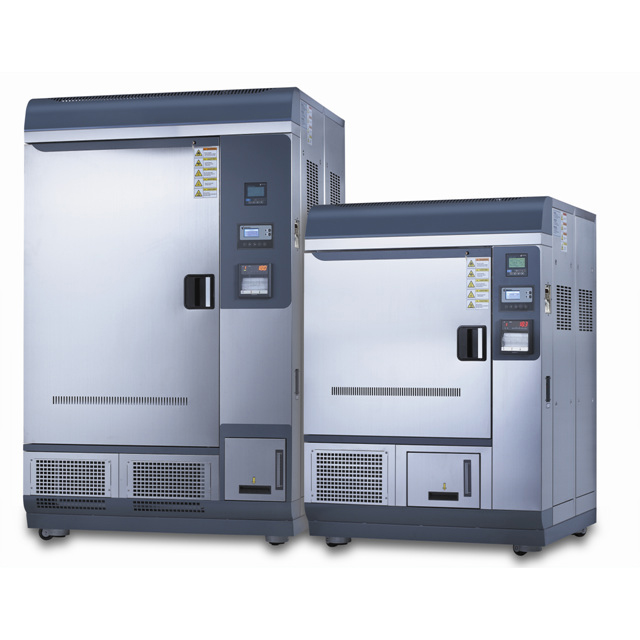

Pharmaceutical stability test chamber 300 to 800L
Manufacturer : JEIOtech
SPECIFICATIONS
|
Model |
TH-ICH-300 |
TH-ICH-800 |
||
|---|---|---|---|---|
|
Chamber Volume (L / cu ft) |
300 / 10.6 |
760 / 26.8 |
||
|
Controller |
PID control (LCD Type) |
|||
|
Temperature 1) |
Range |
without Humidity (℃ /oF) |
-5 to 85 / 23 to 185 without Light |
|
|
0 to 85 / 32 to 185 with Light |
||||
|
with Humidity (℃ / oF) |
+15 to 85 / 59 to185 with Light |
|||
|
Fluctuation 1) (±℃ / oF) at 40℃ / 60%RH |
0.3 / 0.55 |
0.3 / 0.55 |
||
|
Variation 1) (±℃ / oF) at 40℃ / 60%RH |
0.5 / 0.9 |
0.7 / 1.3 |
||
|
Humidity |
Range (%RH) |
FULL RANGE : 20 to 85 |
||
|
Fluctuation 2) (±%RH) at 60%RH / 40℃ |
3 |
|||
|
Variation 2) (±%RH) at 60%RH / 40℃ |
5 |
|||
|
Light Source |
Cool White 3) |
6,000 lux |
6,500 lux |
|
|
Ultraviolet-A 3) |
4.5 W/㎡ |
5 W/㎡ |
||
|
Light Uniformity |
VIS. : ±10% UVA : ±15% |
VIS. : ±15% UVA : ±15% |
||
|
Typical Time Required to Reach ICH Recommendation of 1.2 million lux-hr |
≒ 200Hr |
≒ 184Hr |
||
|
Typical Time Required to Reach ICH Recommendation of 200 W-hr/m2 |
≒ 50Hr |
≒ 40Hr |
||
|
Time |
Heating 4) |
25min (20℃ → 85℃) |
30min (20℃ → 85℃) |
|
|
Cooling 4) |
35min (20℃ → -5℃) |
40min (20℃ → -5℃) |
||
|
Refrigeration |
System |
Air - cooled |
||
|
Refrigerant |
R- 404A |
|||
|
Capacity (W) |
250 |
470 |
||
|
Cooler |
Copper plate fin cooler |
|||
|
Heater |
Material |
Ni-Cr Wire Heater / SUS Tube Heater |
||
|
Drying Bulb (W) |
1500 |
2300 |
||
|
Humidity Bulb (W) |
1200 |
2000 |
||
|
Sensor |
Temperature |
Pt 100 |
||
|
Humidity |
Electronic sensor (Free of drying a wet pack and good response time) |
|||
|
Air Flow |
2 set of sirocco fan (2×60 W) : Vertical type |
|||
|
Material |
Internal |
SUS #304 (2B polish) |
||
|
External |
SUS #304 (Hairline finish) & Steel, 2t, Double painted & baked |
|||
|
Insulation |
Polyurethane (70mm / 2.76") |
|||
|
Door |
EPDM Sheet |
|||
|
Operating Temperature |
18℃ to 30℃ / 64.4oF to 56oF, 85%RH (Non-corrosive and pure place) |
|||
|
Water Tank |
Capacity (L / cu ft) |
15 / 0.53 |
||
|
Water Quality |
pH6.2 ~ 7.2, Electrical conductivity 20㎲ / cm to below |
|||
|
Interface Port |
Basically RS-232C, [RS-485 : optional] |
|||
|
Cable Port |
Basically one hole provided / Ø 50mm (2"),Optionally max. two holes available / Ø 50 or 80mm (2 or 3.2") |
|||
|
Quantity of Wire Shelves (included / max.) |
2 / 8 |
2 / 17 |
||
|
Distance of between Shelves (mm / inch) |
60 /2.4 |
|||
|
Dimension |
Internal (mm / inch) |
750×650×650 / 29.5×25.6×25.6 |
750×880×1160 / 29.5×34.6×45.7 |
|
|
External (mm / inch) |
1130×985×1520 / 44.5×38.8×59.8 |
1220×1215×1965 / 48×47.8×77.4 |
||
|
Net Weight (kg / lbs) |
280±10 / 617±22 |
400±10 / 882±22 |
||
|
Electrical Requirements |
AC230V, 1ph, 60Hz |
15.4 A |
24.5 A |
|
|
Cat.No. |
AAHC1001K |
AAHC1011K |
||
|
AC230V, 1ph, 50Hz |
14.7 A |
23.5 A |
||
|
Cat.No. |
AAHC1002K |
AAHC1012K |
||
