FC
Tensile force gauge Compact force-measuring device
Manufacturer : Sauter
- Turnable display with backlight
- Real time or Peak Hold Mode to observe transcients or capture peaks
- Metal housing for durable usage in harsh environmental conditions
- Capacity display: A bar lights up to show how much of the measuring range is still available
- Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed between 10 and 100 % of [Max], in pull and push direction. The process is supported by an acoustic and visual signal
- Safety: If loads exceed 110 % of the measuring range, the device will give clear acoustic and visual signals
- Internal memory for up to 1000 measurements
- USB data interfaces as standard
- Data interface RS-232 (only for connection to the printer)
- Selectable: AUTO-OFF function or permanent operation

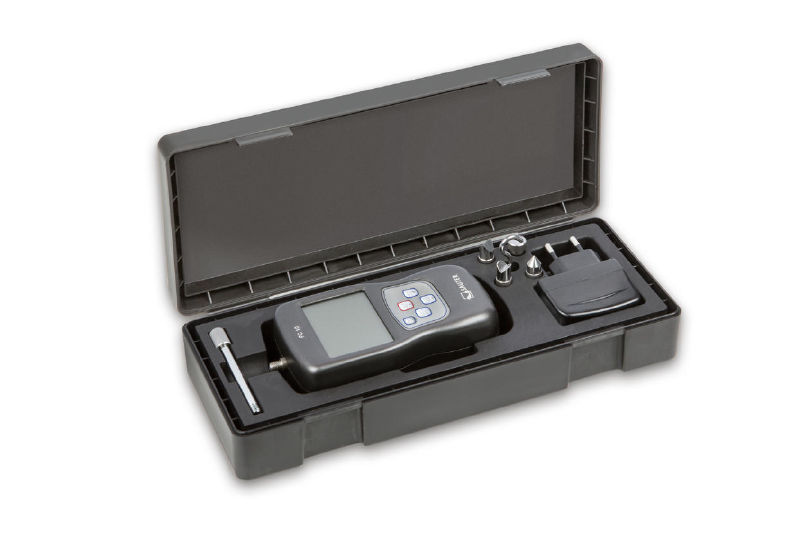

- Delivered in a hard carrying case
- Selectable measuring units: N, kg, oz, lb

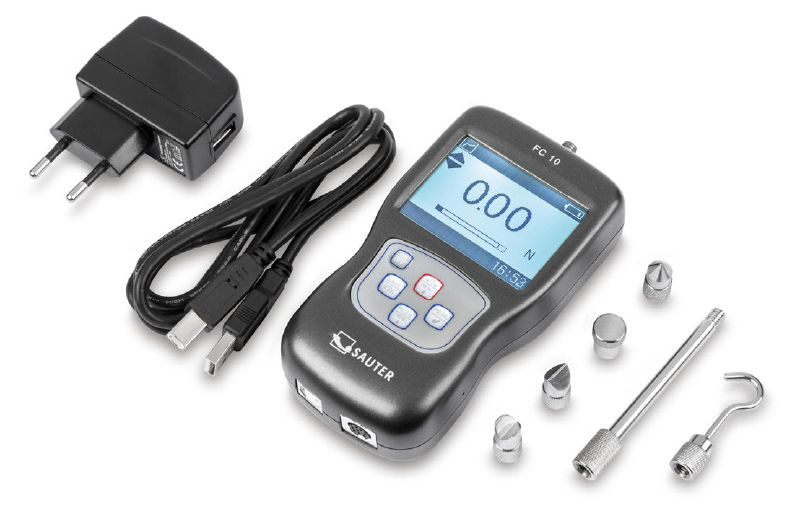

- Standard attachments: as shown below, extension rod: 90 mm
| Model | Measuring capacity [Max] N |
Readability [d] N |
|
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FC 10 | 10 | 0,01 | ||||||||||||||
| FC 50 | 50 | 0,01 | ||||||||||||||
| FC 100 | 100 | 0,1 | ||||||||||||||
| FC 500 | 500 | 0,1 | ||||||||||||||
| FC 1K | 1000 | 1 |
|
