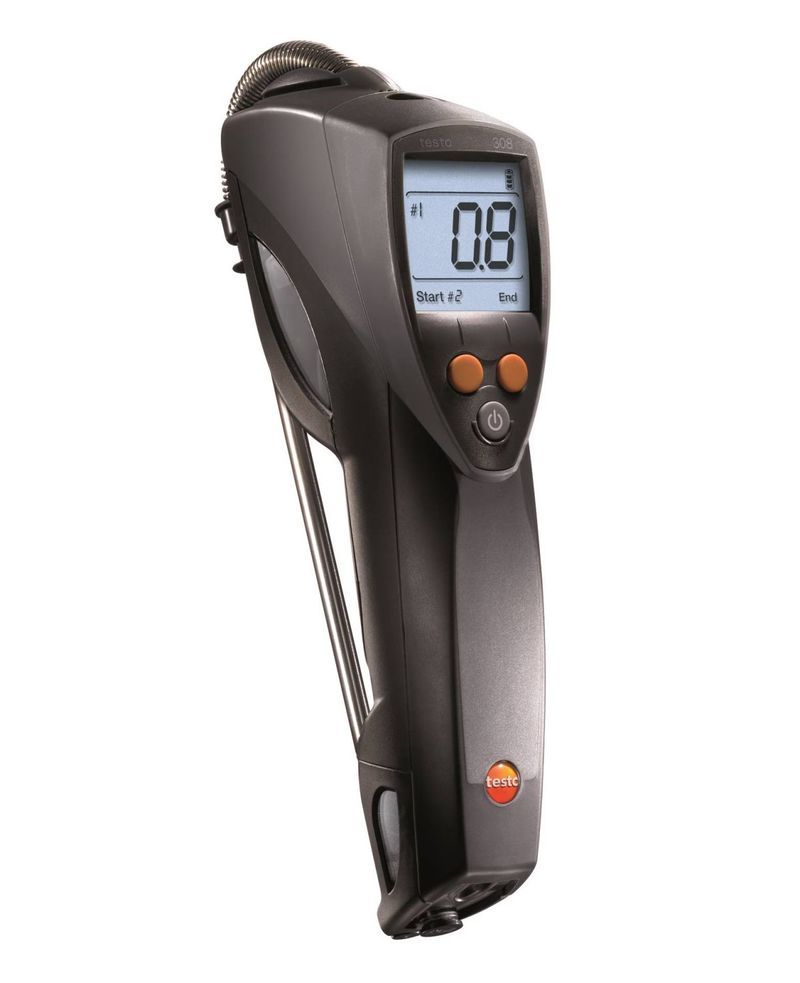

Digital smoke tester
Manufacturer : testo
-
Fully automatic soot count measurements
-

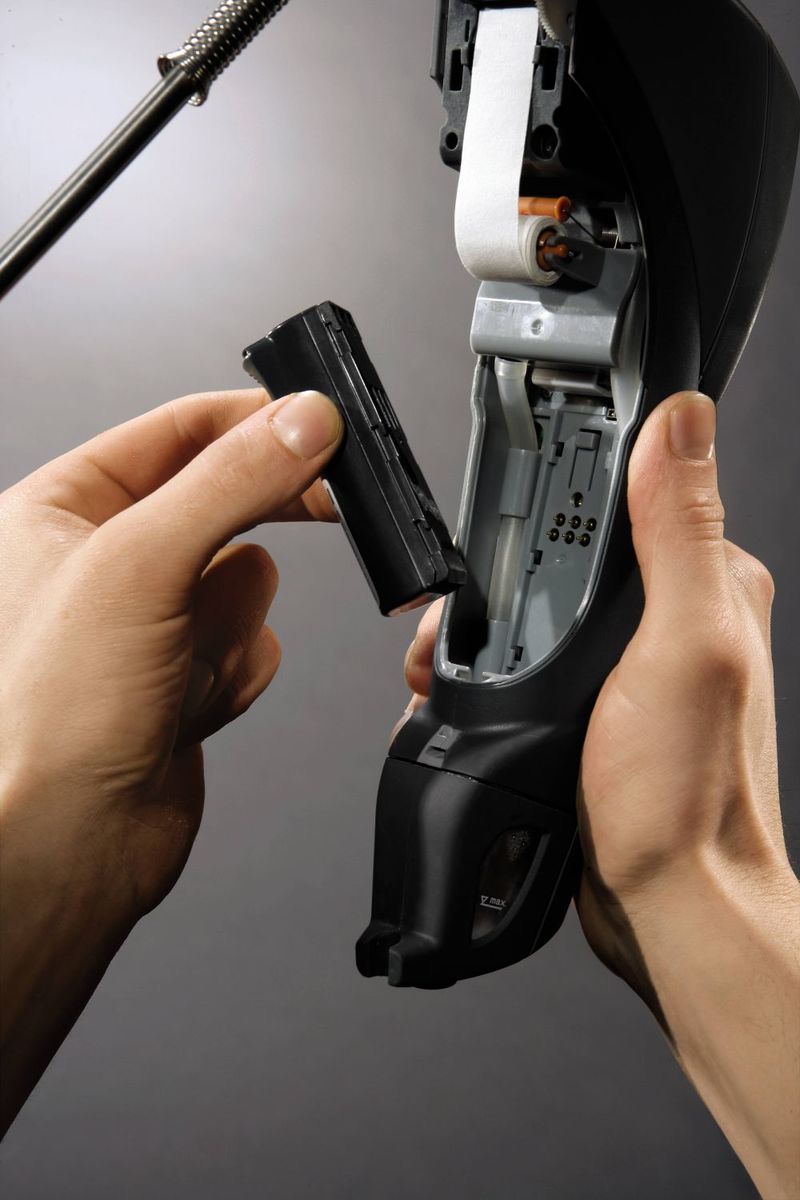

User-friendly menu guide; easy-to-read, backlit display; easy-to-change soot filter rolls
-
Optional print out on site
-
Optional print out on site
Benefit from groundbreaking technology. No more manual or semi-manual soot particle measurements. The testo 308 smoke meter provides digital readings for easy documentation.
| Smoke number - Photodiode | |
|---|---|
|
Measuring range |
0 to 6 RZ |
|
Accuracy |
±0.2 RZ |
|
Resolution |
±0.1 RZ |
| General technical data | |
|---|---|
|
Storage temperature |
-4° to 122 °F / -20 to +50 °C |
|
Weight |
21 oz. incl. battery / 600 g incl. battery |
|
Dimensions |
11 x 2 x 5 in. / 270 x 63 x 120 mm |
|
Operating temperature |
32° to 104 °F / 0 to +40 °C |
|
Protection class |
IP40 |
|
Pump capacity |
1.63 ± 0.1 l |
|
Reference filter |
at 990 mbar and +20 °C ambient temperature |
|
Gas sampling |
Stainless steel pipe ca. 220 mm, rubber hose 100 mm |
|
Standards |
EU-guideline 2004/108/EG |
|
Warranty |
2 years |
|
Display function |
Segment display |
|
Display ligthing |
with background illumination |
|
Storage battery type |
Lithium ion battery, 2600 mA |
|
Battery charge |

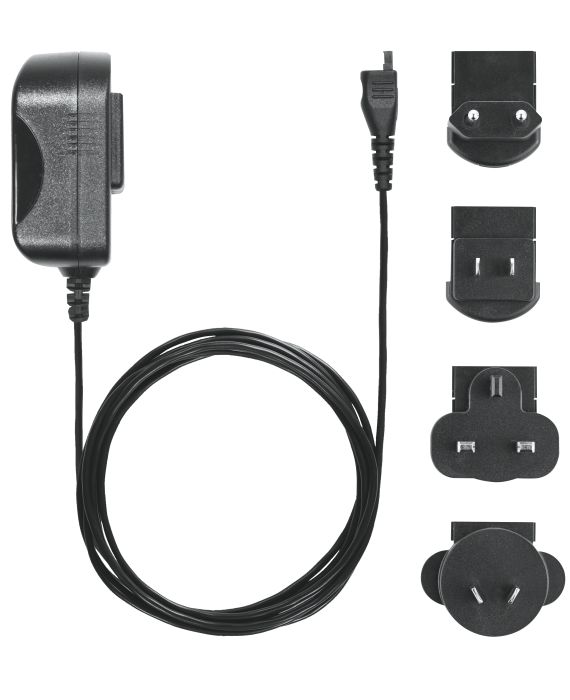

in the instrument via mains unit or externally by charger |
|
Battery life |
45 individual measurements |
