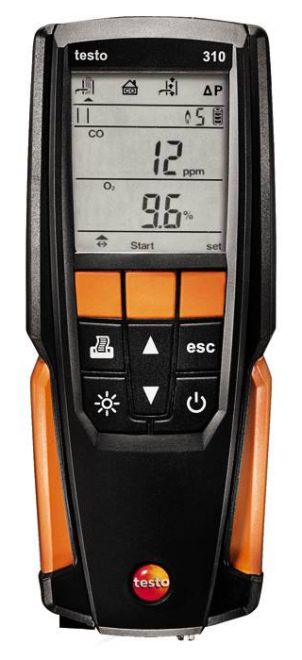

310 kit

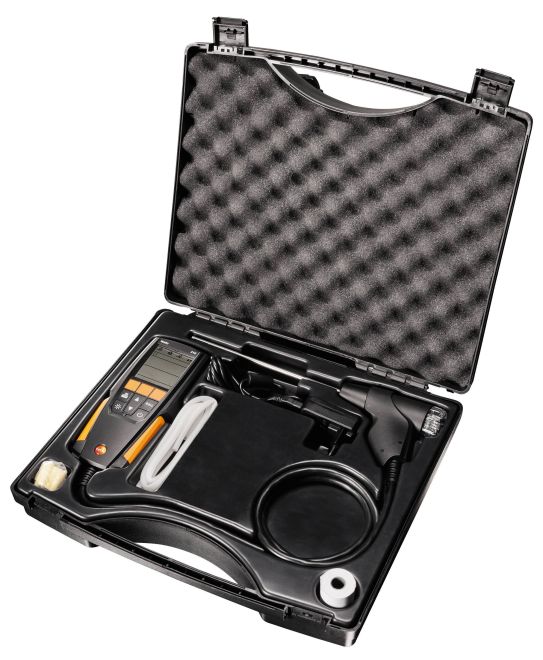

Flue Gas Analyser, Hard case, rechargeable battery, usb mains cable, silicon hose for pressure, 5 x filters, calibration protocol, 180mm probe with cone, spare pressure plugs.
Manufacturer : testo
-
Direct O2, CO, flue gas and ambient temperature measurements
-
Integrated measurement menu for flue gas, draft, CO ambient air and pressure
-
Quick sensor zero in only 30 seconds
-
Large, backlit digital display, rechargeable lithium battery with up to 10 hours life
| Temperature - TC Type K (NiCr-Ni) | |
|---|---|
|
Measuring range |
-20 to +100 °C |
|
Accuracy |
±1 °C |
|
Resolution |
0.1 °C |
|
Reaction time |
< 50 s |
| Temperature - TC Type J (Fe-CuNi) | |
|---|---|
|
Measuring range |
0 to +400 °C |
|
Accuracy |
±1 °C (0 to +100 °C) ±1.5 % of mv (> 100 °C) |
|
Resolution |
0.1 °C |
|
Reaction time |
< 50 s |
| Flue gas O₂ | |
|---|---|
|
Measuring range |
0 to 21 Vol.% |
|
Accuracy |
±0.2 Vol.% |
|
Resolution |
0.1 Vol.% |
|
Reaction time t₉₀ |
30 s |
| Flue gas Draught | |
|---|---|
|
Measuring range |
-20 to +20 hPa |
|
Accuracy |
±0.03 hPa (-3.00 to +3.00 hPa) ±1.5 % of mv (Remaining Range) |
|
Resolution |
0.01 hPa |
| Flue gas degree of effectivity, Eta (calculated) | |
|---|---|
|
Measuring range |
0 to 120 % |
|
Resolution |
0.1 % |
| Flue gas loss (calculated) | |
|---|---|
|
Measuring range |
0 to 99.9 % |
|
Resolution |
0.1 % |
| Flue gas CO₂ calculation (calculated from O₂) | |
|---|---|
|
Measuring range |
0 to CO₂ max (Display range) |
|
Accuracy |
±0.2 Vol.% |
|
Resolution |
0.1 Vol.% |
|
Reaction time t₉₀ |
< 40 s |
| Pressure measurement | |
|---|---|
|
Measuring range |
-40 to +40 hPa |
|
Accuracy |
±0.5 hPa |
|
Resolution |
0.1 hPa |
| Flue gas CO (without H₂-compensation) | |
|---|---|
|
Measuring range |
0 to 4000 ppm |
|
Accuracy |
±20 ppm (0 to 400 ppm) ±5 % of mv (401 to 2000 ppm) ±10 % of mv (2001 to 4000 ppm) |
|
Resolution |
1 ppm |
|
Reaction time t₉₀ |
60 s |
| Ambient CO | |
|---|---|
|
Measuring range |
0 to 4000 ppm |
|
Accuracy |
±20 ppm (0 to 400 ppm) ±5 % of mv (401 to 2000 ppm) ±10 % of mv (2001 to 4000 ppm) |
|
Resolution |
1 ppm |
|
Reaction time |
60 s |
| General technical data | |
|---|---|
|
Storage temperature |
-20 to +50 °C |
|
Weight |
(with probe) Approx. 700 g |
|
Dimensions |
201 x 83 x 44 mm |
|
Operating temperature |
-5 to +45 °C |
|
Warranty |
Instrument: 24 months; Gas sensors: 24 months; Thermocouple 12 months; rechargeable battery: 12 months; Probe: 24 months |
|
Display type |
LCD |
|
Display function |
Backlit 2-line display |
|
Power supply |
Battery: 1500 mAh, mains unit 5V/1A |
