330-1 LL

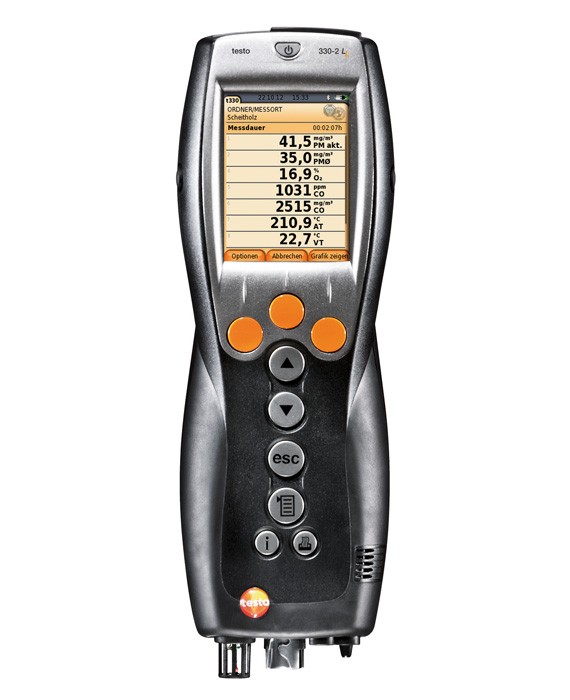

Flue Gas Analyser with long-life gas sensors, rechargeable battery, mains charging unit (0554 1096), calibration protocol, graphic display, Flue gas probe (180mm x 6mm) and carrying case.
Manufacturer : testo
-
Included in the set: TÜV-tested testo 330-1 LL flue gas analyzer, including O2 and CO H2-compensated sensor, Bluetooth interface, mains unit, TÜV-tested modular flue gas probe, combustion air temperature probe, pressure connection set, testo BLUETOOTH® printer and professional instrument case
-
TÜV-tested flue gas analyzer according to 1st German Federal Immission Control Ordinance (BImSchV) and EN 50379, Parts 1 to 3
-
Long-life sensors with up to 6 years' service life
-
4-year warranty
| Differential Pressure - Piezoresistive | |
|---|---|
|
Measuring range |
0 to +300 hPa |
|
Accuracy |
±0.5 hPa (0.0 to 50.0 hPa) ±1 % of mv (50.1 to 100.0 hPa) ±1.5 % of mv (Remaining Range) |
|
Resolution |
0.1 hPa |
| Flue gas O₂ | |
|---|---|
|
Measuring range |
0 to 21 Vol.% |
|
Accuracy |
±0.2 Vol.% |
|
Resolution |
0.1 Vol.% |
|
Reaction time t₉₀ |
< 20 s |
| Flue gas CO (with H₂-compensation) | |
|---|---|
|
Measuring range |
0 to 8000 ppm |
|
Accuracy |
±10 ppm or ±10 ppm (0 to 200 ppm) ±20 ppm or ±5 ppm (201 to 2000 ppm) ±10 % of mv (2001 to 8000 ppm) |
|
Resolution |
1 ppm |
|
Reaction time t₉₀ |
< 60 s |
| Flue gas COlow | |
|---|---|
|
Measuring range |
0 to 500 ppm |
|
Accuracy |
±2 ppm (0 to 39.9 ppm) ±5 % of mv (40 to 500 ppm) |
|
Resolution |
0.1 ppm |
|
Reaction time t₉₀ |
< 40 s |
| Flue gas NO | |
|---|---|
|
Measuring range |
0 to 3000 ppm |
|
Accuracy |
±5 ppm (0 to 100 ppm) ±5 % of mv (101 to 2000 ppm) ±10 % of mv (2001 to 3000 ppm) |
|
Resolution |
1 ppm |
|
Reaction time t₉₀ |
< 30 s |
| Flue gas Nolow | |
|---|---|
|
Measuring range |
0 to 300 ppm |
|
Accuracy |
±2 ppm (0 to 39.9 ppm) ±5 % of mv (40 to 300 ppm) |
|
Resolution |
0.1 ppm |
|
Reaction time t₉₀ |
< 30 s |
| Flue gas Draught | |
|---|---|
|
Measuring range |
-9.99 to +40 hPa |
|
Accuracy |
±0.02 hPa or ±5 hPa (-0.50 to +0.60 hPa) ±0.03 hPa (+0.61 to +3.00 hPa) ±1.5 % of mv (+3.01 to +40.00 hPa) |
|
Resolution |
0.01 hPa |
| Temperature | |
|---|---|
|
Measuring range |
-40 to +1200 °C * |
|
Accuracy |
±0.5 °C (0 to +100.0 °C) ±0.5 % of mv (Remaining Range) |
|
Resolution |
0.1 °C (-40 to +999.9 °C) 1 °C (> +1000 °C) |
|
Footnote |
* Measuring range depends on the connected flue gas probe |
| Flue gas degree of effectivity, Eta (calculated) | |
|---|---|
|
Measuring range |
0 to 120 % |
|
Resolution |
0.1 % |
| Flue gas loss (calculated) | |
|---|---|
|
Measuring range |
0 to 99.9 % |
|
Resolution |
0.1 % |
| Flue gas CO₂ calculation (calculated from O₂) | |
|---|---|
|
Measuring range |
0 to CO₂ max (Display range) |
|
Accuracy |
±0.2 Vol.% |
|
Resolution |
0.1 Vol.% |
|
Reaction time t₉₀ |
< 40 s |
| Velocity / Volume flow |
|---|
| Pressure measurement | |
|---|---|
|
Measuring range |
0 to +300 hPa |
|
Accuracy |
±0.5 hPa (0.0 to 50.0 hPa) ±1 % of mv (50.1 to 100.0 hPa) ±1.5 % of mv (Remaining Range) |
|
Resolution |
0.1 hPa |
| Flue gas CO (without H₂-compensation) | |
|---|---|
|
Measuring range |
0 to 4000 ppm |
|
Accuracy |
±20 ppm (0 to 400 ppm) ±5 % of mv (401 to 2000 ppm) ±10 % of mv (2001 to 4000 ppm) |
|
Resolution |
1 ppm |
|
Reaction time t₉₀ |
< 60 s |
| Ambient CO | |
|---|---|
|
Measuring range |
0 to 500 ppm |
|
Accuracy |
±5 ppm (0 to 100 ppm) ±5 % of mv (> 100 % of mv) |
|
Resolution |
1 ppm |
|
Reaction time |
Approx. 35 s |
| Ambient CO₂ | |
|---|---|
|
Measuring range |
0 to 1 Vol.% 0 to 10000 ppm |
|
Accuracy |
±75 ppm or ±3 % of mv (0 to 5000 ppm) ±150 ppm or ±5 % of mv (5001 to 10000 ppm) |
|
Reaction time |
Approx. 35 s |
| Gas leak measurement for combustible gases (via gas leak detection probe) | |
|---|---|
|
Measuring range |
0 to 10000 ppm CH₄ / C₃H₈; Display range |
|
Accuracy |
Signal optical display (LED) audible signal via buzzer |
|
Reaction time t₉₀ |
< 2 s |
| Temperature (via the fine pressure probe) |
|---|
| General technical data | |
|---|---|
|
Storage temperature |
-20 to +50 °C |
|
Weight |
600 g (without rechargeable battery) |
|
Dimensions |
270 x 90 x 65 mm |
|
Operating temperature |
-5 to +45 °C |
|
Protection class |
IP40 |
|
Warranty |
Probe: 48 months; Gas sensors (O₂, CO) 48 months; NO sensor 24 months; COlow sensor 24 months; Thermocouple 12 months; rechargeable battery: 12 months |
|
Display size |
240 x 320 pixels |
|
Display function |
Colour graphic display |
|
Power supply |
Rechargeable battery pack 3.7 V / 2.6 Ah; Mains unit 6 V / 1.2 A |
|
Maximum |
500,000 readings |
