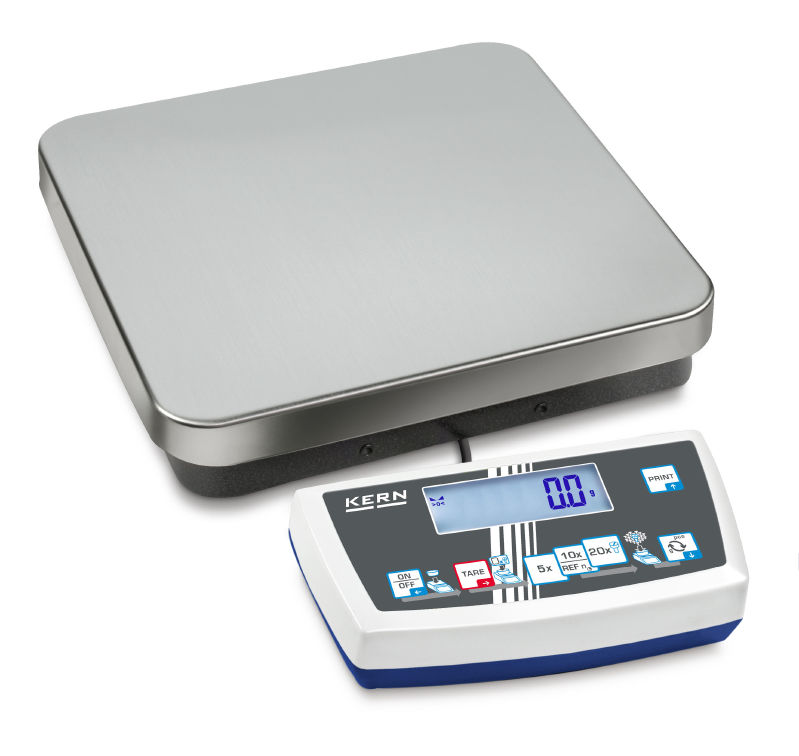

Easy to use industrial counting scale for heavy loads, counting resolution up to 300,000 points

Self-explanatory graphic control panel, Even without operating instructions, the counting process can be understood immediately
- - No learning time = reduces costs
- - Ideal for untrained users
- - Visualised process means that operating errors are avoided
Precise counting: The automatic optimisation of reference weight gradually improves the average value of the piece weight
The 4 steps are carried out from left to right:
- Place the empty container onto the weighing plate and tare by pressing the TARE key
- Place the reference quantity for the goods to be counted into the container (5, 10, or 20 pieces)
- Confirm the selected reference quantity by pressing the key (5, 10 or 20)
- Pour in the goods to be counted. The number of pieces will immediately be shown on the display

Model	Weighing capacity [Max] kg	Read- ability [d] g	Min. piece weight (Normal) g/piece	Counting resolution Points	Weighing plate W×D×H mm
CDS 4K0.02	4	0,02	0,2	200000	228 × 228 × 95
CDS 15K0.05	15	0,05	0,5	300000	308 × 318 × 75
CDS 16K0.1	16	0,1	1	160000	308 × 318 × 75
CDS 30K0.1	30	0,1	1	300000	308 × 318 × 75
CDS 30K0.1L	30	0,1	1	300000	500 × 400 × 125
CDS 36K0.2L	36	0,2	2	180000	500 × 400 × 125
CDS 60K0.2	60	0,2	2	300000	500 × 400 × 125
