HCD

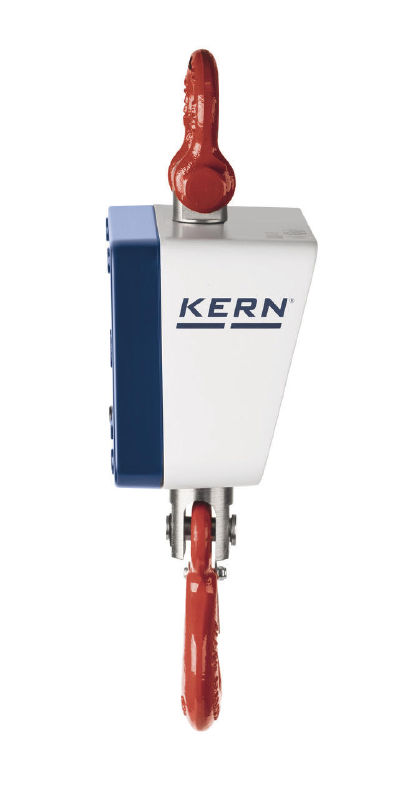

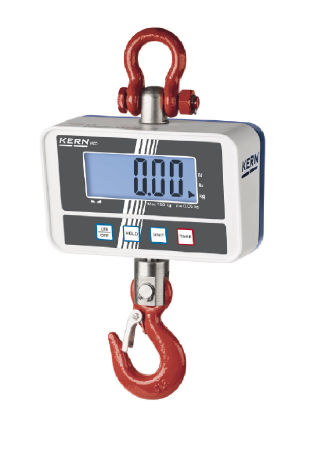

High-resolution hanging scale for loads up to 300 kg
Manufacturer : Kern
NEW: Fully-equipped crane scale for low to medium load ranges. The solid design guarantees that extra level of safety (TÜV tested). Thanks to the large LCD display and the remote control which is delivered as standard, it can also be operated safely from a distance and results can be read off
With the TÜV certification mark, the scale meets the requirements of the standard EN 13155 (Non-fixed load lifting attachments) and EN 61010-1 (Electrical safety)
High mobility: thanks to battery operation, compact, lightweight construction, it is suitable for the use in several locations (production, warehouse, dispatch department)
Hold function: When the weighing value remains unchanged the weight indicated on the display is automatically ''frozen'' until the HOLD key is pressed
Tare: Resets the display to "0" when there is a load on the scale. Now removed or added loads are directly displayed
Battery level indicator, visual using LED
Large high-contrast display that is easy to read
Standby function: display automatically switched off after 5 min without a change of load. Automatic activation with the touch of a key
Hook with safety catch, revolving

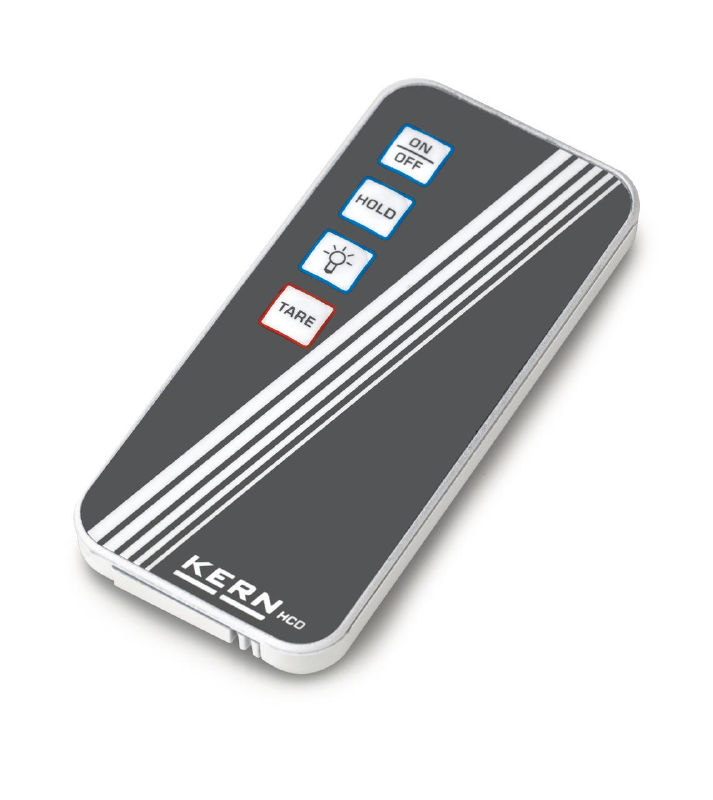

Infrared remote control standard. Radio range up to 20 m. All functions can be selected. Batteries included
|

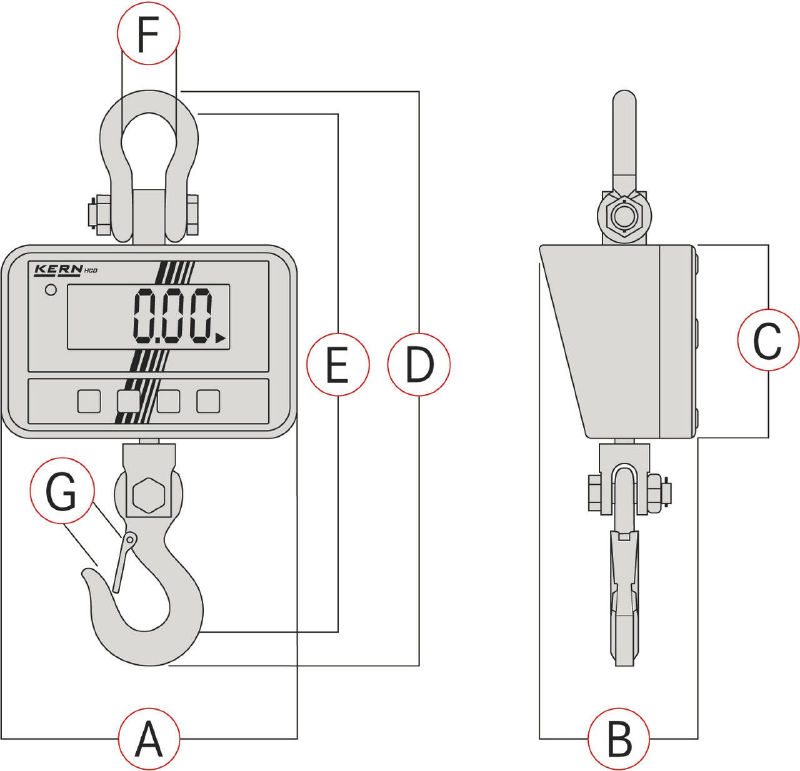

Model
|
Weighing capacity [Max] kg |
Readability [d] g |
Net weight approx. kg |
A
mm |
B
mm |
C
mm |
D
mm |
E
mm |
F
mm |
G
mm |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HCD 60K-2 | 60 | 20 | 0,95 | 194 | 79,3 | 97,7 | 276,5 | 246,5 | 26 | 23,5 | |||||||||
| HCD 100K-2 | 150 | 50 | 1,151 | 194 | 79,3 | 97,7 | 276,5 | 246,5 | 26 | 23,5 | |||||||||
| HCD 300K-1 | 300 | 100 | 0,945 | 194 | 79,3 | 97,7 | 276,5 | 246,5 | 26 | 23,5 | |||||||||
| Dual-range balance switches automatically to the next largest weighing range [Max.] and readout [d]. | |||||||||||||||||||
| HCD 100K-2D | 60 | 150 | 20 | 50 | 1,048 | 194 | 79,3 | 97,7 | 276,5 | 246,5 | 26 | 23,5 | |||||||||
| HCD 300K-2D | 150 | 300 | 50 | 100 | 0,9 | 194 | 79,3 | 97,7 | 276,5 | 246,5 | 26 | 23,5 | |||||||||
