HFD

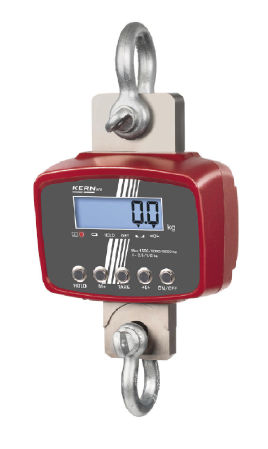

Robust, high-resolution crane scale up to 12 t
Manufacturer : Kern
With the TÜV certification mark, the scale meets the requirements of the standard EN 13155 (Non-fixed load lifting attachments) and EN 61010-1 (Electrical safety)
Because of its stable construction and robust design, it is ideal for continuous use in industrial environment
High mobility: thanks to battery operation and compact construction, it is suitable for use in several locations
Hold function: When the weighing value remains unchanged the weight indicated on the display is automatically ''frozen'' until the HOLD key is pressed
Tare: Resets the display to "0" when there is a load on the scale. Now removed or added loads are directly displayed
Solid shackles, non-revolving

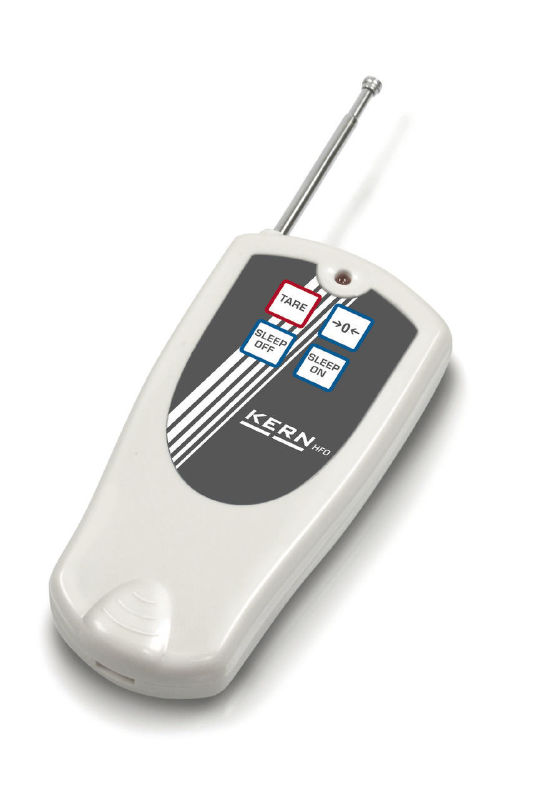

[/] Radio remote control standard. Radio range up to 20 m. All functions can be selected. Batteries included
|
Model
|
Weighing range [Max] kg |
Readout [d] g |
A mm |
B mm |
C mm |
D mm |
E mm |
F mm |
G mm |
|
|
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HFD 600K-1 | 150 | 300 | 600 | 50 | 100 | 200 | 194 | 129 | 145 | 421 | 383 | 50,8 | 50,8 | |||||||||
| HFD 1T-4 | 300 | 600 | 1500 | 100 | 200 | 500 | 194 | 129 | 145 | 421 | 383 | 50,8 | 50,8 | |||||||||
| HFD 3T-3 | 600 | 1500 | 3000 | 200 | 500 | 1000 | 194 | 129 | 145 | 421 | 383 | 50,8 | 50,8 | |||||||||
| HFD 6T-3 | 1500 | 3000 | 6000 | 500 | 1000 | 2000 | 194 | 129 | 145 | 477 | 426 | 68,3 | 68,3 | |||||||||
| HFD 10T-3 | 3000 | 6000 | 12000 | 1000 | 2000 | 5000 | 194 | 129 | 145 | 573 | 510 | 82,5 | 82,5 |
