Click on image to zoom

from 60L to 152L

Innovative passive sealing system
Automatic locking system with pressure and temperature monitoring
Opening temperature pre-select between 60-97 °C, Thermolock
No electronics in the lid - impervious to steam and heat
Timer, 4 program groups with 3 sub-groups each, including night and pressure cooker program
Bright membrane display, clear, self-explanatory

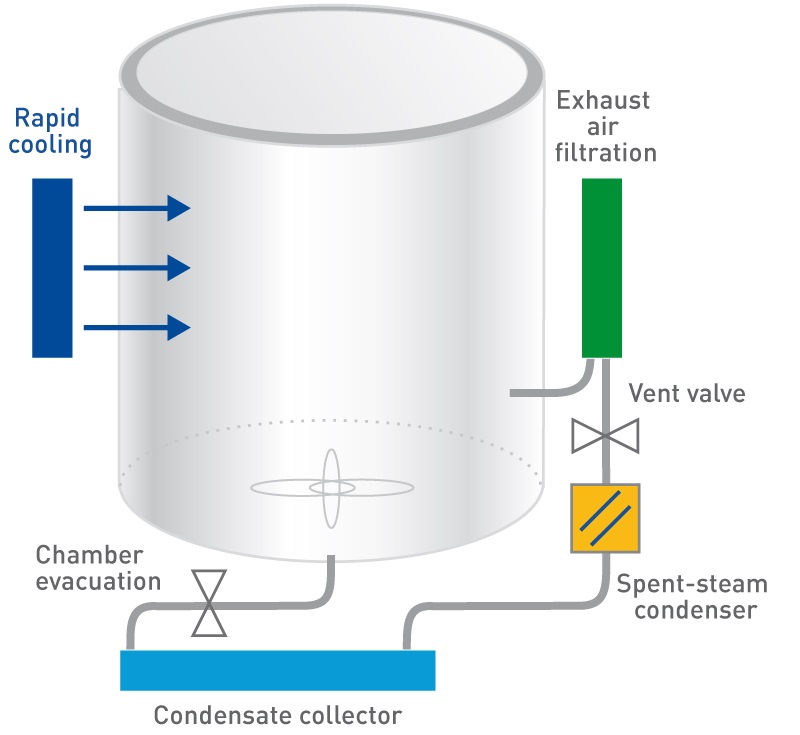

Innovative spent steam condensation, efficient, matched to the energy and volume

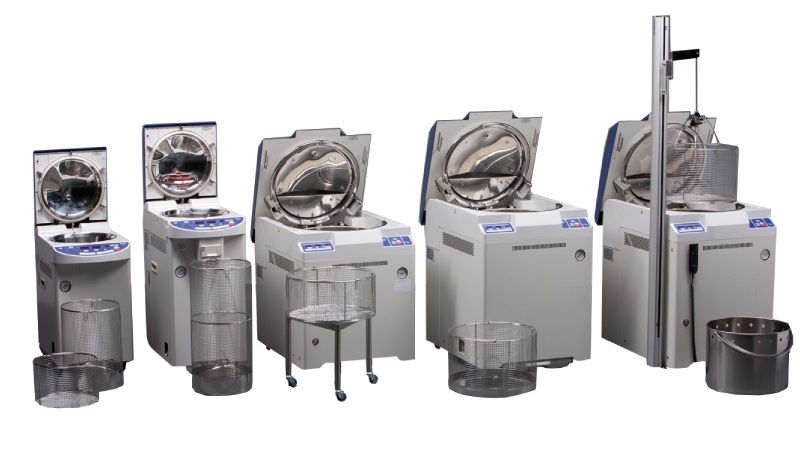

Four sizes

HG 50
Chamber volume of 60 L
Effective useful volume of 50.2 L

HG 80
Chamber volume of 85.1 L
Effective useful volume of 76 L

HG 113
Chamber volume of 131.7 L
Effective useful volume of 108 L

HG 133
Chamber volume of 152.2 L
Effective useful volume of 129 L

Effective vacuum

Mobile use

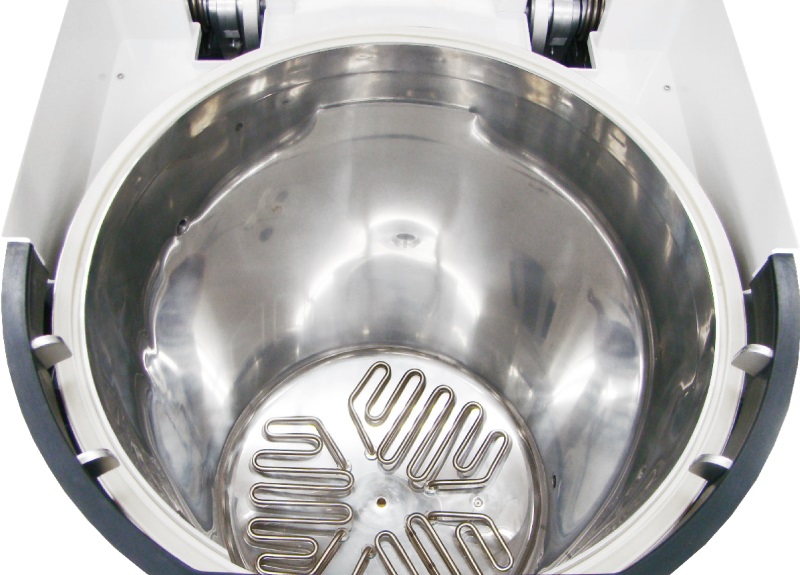

Heating

HGD Technical Data		HG 50	HG 80	HG 113	HG 133
Chamber volume	Liter	60	85,1	131,7	152,2
Useful volume	Liter	50,2	76	108	129
Chamber dimensions Ø x H	mm	364 x 482	364 x 730	500 x 552	500 x 656
Exterior dimensions W x D x H	mm	455 x 691 x 890	455 x 691 x 1030	686 x 870 x 930	686 x 870 x 1034
Required space W x D x H	mm	465 x 970 x 1250	465 x 970 x 1390	700 x 1150 x 1350	700 x 1150 x 1450
Electrical power	kW	3	3,8	5,8	5,8
Weight	kg	62	73	137	145
Power supply	V	AC 230 V/240 V		AC 400 V 50/60 Hz 3 phase
Allowable operating temperature	°C	135°		138°
Selectable operating temperature	°C	105° - 135°
Warming temperature	°C	45° - 60°
Max. operating pressure	bar	2,5
Automatic start		variable, 1 minute to 7 days
Sterilization time	t	variable, 1 to 300 minutes
Locking system		automatic
Markings		CE, TÜV Bayern e.V./TÜV Rheinland
Vessel material		SUS304 (high-grade stainless steel)
Documentation		Integrated printer/USB (optional)		Integrated printer/USB/Memory stick (optional)
Safety systems		Electro-mechanical safety lock, safety valve, low-water interrupt, overpressure protection switch, overheating protection switch, circuit breaker, fault indicator (visual and audible)
Item Number		21001	21002	21003	21004
