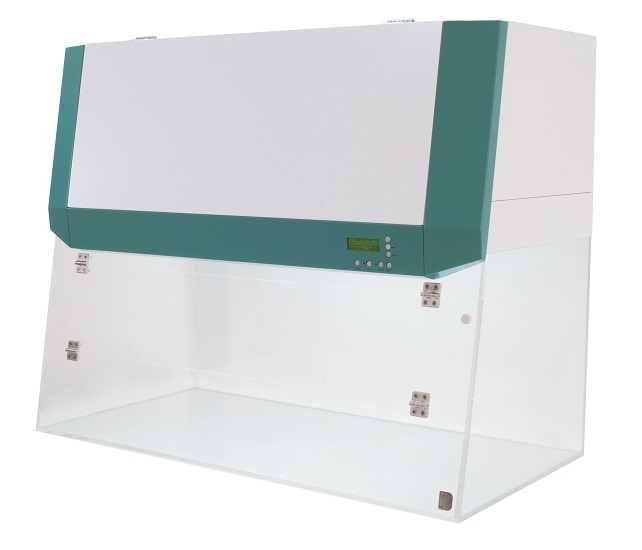

PCR Workstations, ISO 14644-1 Class 4 compliant

TECHNICAL SPECIFICATIONS

Model			PW-01		PW-11		PW-21
Air Flow type			Vertical
Max. air volume (cmh / cfm)			557 / 327		697 / 408		929 / 546
Min. air volume (cmh / cfm)			167 / 97		209 / 121		279 / 162
Laminar airflow velocity (m / s / fpm)			0.3 / 60
Filter	Air cleanliness		ISO 14644-1Class 4
	HEPA Filter		Typical efficiency of 99.99% at 0.3 ㎛ US MIL -STD -282 ; Micro glass fiber media, Particle board, AL separator, Neoprene gaskets
	Pre-Filter		Typical efficiency of 99.99% at 0.3 ㎛ US MIL -STD -282 ; Micro glass fiber media, Particle board, AL separator, Neoprene gaskets
Noise level (dBA)			Typically < 60 dBA at initial Blower speed
Material	Work Surface		10mm tick acrylic resin (Clear type)
	Window (Front, Side / Back)		8mm / 10mm tick acrylic resin (Clear type)
Illumination	Intensity	FL lamp (lux)	>1000
		UV Density (㎼/cm2)	165		185		330
	Capacity	FL Lamp	15W×1EA		20W×1EA		30W×1EA
		UV Lamp	15W×1EA		20W×1EA		30W×1EA
Dimensions (W×D×H)	Interior (mm / inch)		700×585×602 / 27.5×23×23.7		880×585×602 / 34.6×23×23.7		1180×585×602 / 46.5×23×23.7
	Exterior (mm / inch)		720×605×964 / 28×24×38		900×605×964 / 35.4×24×38		1200×605×964 / 47.2×24×38
	Weight (Body) (kg / lbs)		56.2 / 123.9		64.2 / 141.5		77.8 / 171.5
Electric requirement (230V)			60Hz, 1.3A	50Hz, 1.3A	60Hz, 1.4A	50Hz, 1.4A	60Hz, 1.5A	50Hz, 1.5A
Cat. No.			AAHB 3001	AAHB 3002	AAHB 3011	AAHB 3012	AAHB 3021	AAHB 3022
Electric requirement (120V)			60Hz, 2.2A		60Hz, 2.7A		60Hz, 2.9A
Cat. No.			AAHB3003		AAHB3013		AAHB3023
