OCTTCTEMP2000V2

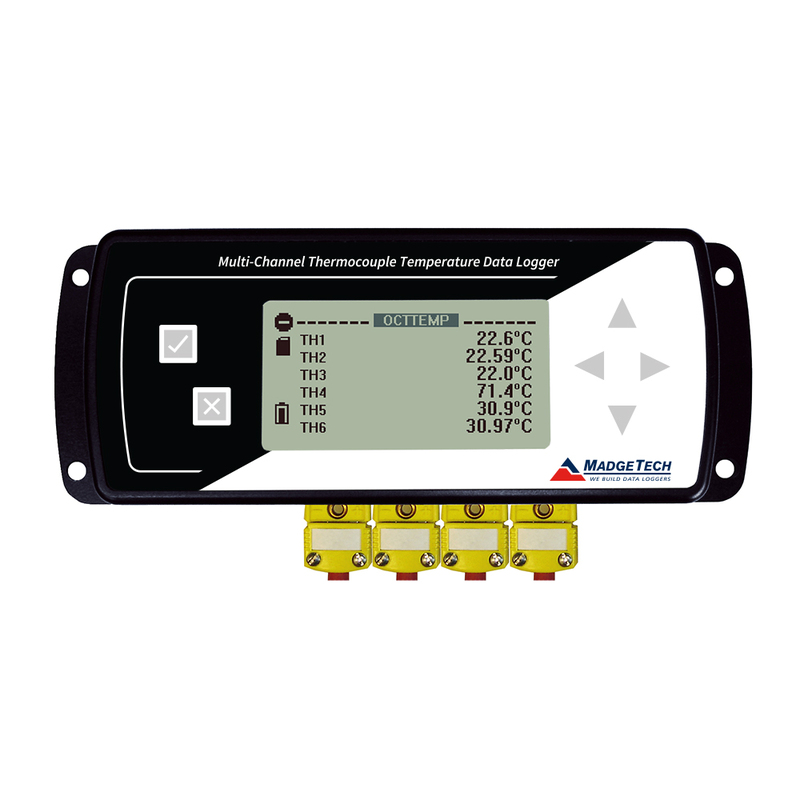

8 Channel Thermocouple Temperature Data Logger with LCD
Manufacturer : Madgetech
TECHNICAL SPECIFICATIONS
General
| Memory | 130,943 readings per channel |
| Reading Rate | 4 Hz up to 1 reading every 24 hours |
| Baud Rate | 115,200 |
| Cold Junction Compensation | Automatic |
| Channels | 8 Internal & 8 Remote |
| Battery Life | 18 month battery life with display off. 3 months typical with continuous display use. |
| Material | Anodized aluminum |
| Dimensions | 7.2 in x 2.7 in x 1.4 in (184 mm x 69 mm x 36 mm) |
| Operating Environment | -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH, non-condensing |
| Required Interface Package | IFC200 |
| Approvals | CE |
Temperature
| Internal Channel Temperature Sensor | Semiconductor |
| Internal Channel Temperature Resolution | 0.05 °C (0.09 °F) |
| Internal Channel Temperature Calibrated Accuracy | ±0.5 °C |
| Remote Channel Temperature Sensor | Thermocouple Types J, K, T, E, R, S, B ,N |
| Remote Channel Temperature Range | Thermocouple Dependent |
| Remote Channel Temperature Resolution | Thermocouple Dependent |
| Remote Channel Temperature Calibrated Accuracy | Thermocouple Dependent |
