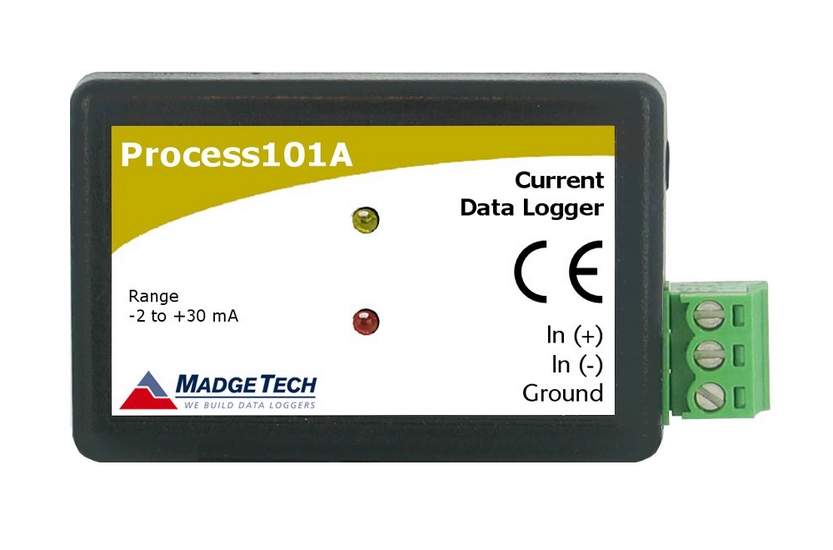

Process101A
Low Level DC Current Data Logger with a 10 Year Battery Life
Manufacturer : Madgetech
TECHNICAL SPECIFICATIONS
CURRENT
| Current Range | 20mA: -2 to 30mA ±160mA: ±160mA ±3A: ±3A |
|---|---|
| Current Resolution | 20mA: 0.5μA ±160mA: 5μA ±3A: 100μA |
| Current Calibrate Accuracy | 20mA, 160mA: ±0.05%FSR 3A: ±0.15%FSR |
| Current Input Impedance | 20mA: 10Ω, ±1% ±160mA: 1Ω, ±1% ±3A:<0.05Ω |
GENERAL
| Memory | 1,000,000 readings; software configurable memory wrap 333,000 readings in multiple start/stop mode |
|---|---|
| Reading Rate | 4Hz to 1 reading every 24 hours |
| Baud Rate | 115,200 |
| Channels | 1 |
| LED Indicators | Red & Green |
| Battery Life | 10 year battery life typical, at a 15 minute reading rate |
| Material | ABS plastic |
| Dimensions | 1.4" x 2.2" x 0.6" (36mm x 56mm x 16mm) |
| Operating Environment | -40 to +80°C (-40 to +176°F), 0~95%RH non-condensing |
| Required Interface Package | IFC200 |
| Approvals | CE |
