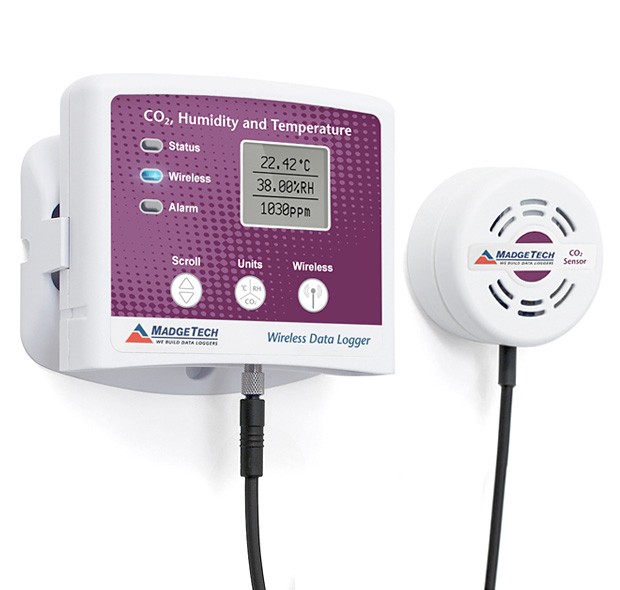

RFCO2RHTemp2000A
Wireless CO2, Humidity and Temperature Data Logger
Manufacturer : Madgetech
TEMPERATURE
| Internal Channel Temperature Sensor | Silicon |
|---|---|
| Internal Channel Temperature Range | 0 °C to +55 °C (+32 °F to +131 °F) |
| Internal Channel Temperature Resolution | 0.08 °C (0.144 °F) |
| Internal Channel Temperature Calibrated Accuracy | ±1.0 °C |
HUMIDITY
| Humidity Sensor | Silicon |
|---|---|
| Humidity Range | 0 %RH to 95 %RH |
| Humidity Resolution | 0.08 %RH |
| Humidity Calibrated Accuracy | ±3.0 %RH from 25 %RH to 75 %RH @ 25 °C, 7 %RH otherwise |
CARBON DIOXIDE
| Carbon Dioxide Range | 0 ppm to 200,000 ppm |
|---|---|
| Carbon Dioxide Resolution | 10 ppm |
| Carbon Dioxide Accuracy | 70 ppm ± 5% of the reading |
WIRELESS
| RF Baud Rate | 250,000 |
|---|---|
| Output Power | +0 dBm typical |
| Receiver Sensitivity | -95 dBm typical |
| Typical outdoors Line of sight | Up to 2000 ft |
| Typical Indoors line of sight | Up to 500 ft |
GENERAL
| Memory | 10,752 readings per channel |
|---|---|
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Baud Rate | 250,000 |
| LED Indicators | Green, Blue & Red |
| Battery Life | 16 months typical at a 10 minute reading rate |
| Material | ABS plastic |

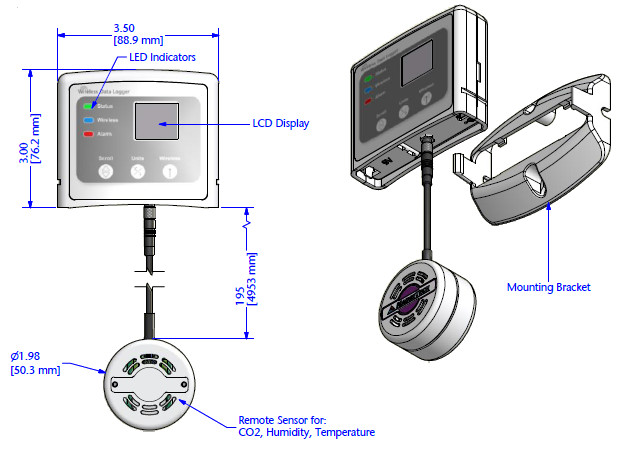

| Dimensions | Data logger: 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) Sensor: 1.98 in x 1.98 in x 1.15 in (50.3 mm x 50.3 mm x 29.2 mm) Cable Length: 16 ft (192 in) |
| IP Rating | IP22 |
| Operating Environment | 0 °C to +55 °C (+32 °F to +131 °F), 0 %RH to 95 %RH non-condensing, 0.002 PSIA to 100 PSIA |
| Required Interface Package | RFC1000 |
| Approvals | US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE) |
