RFRHTemp2000A

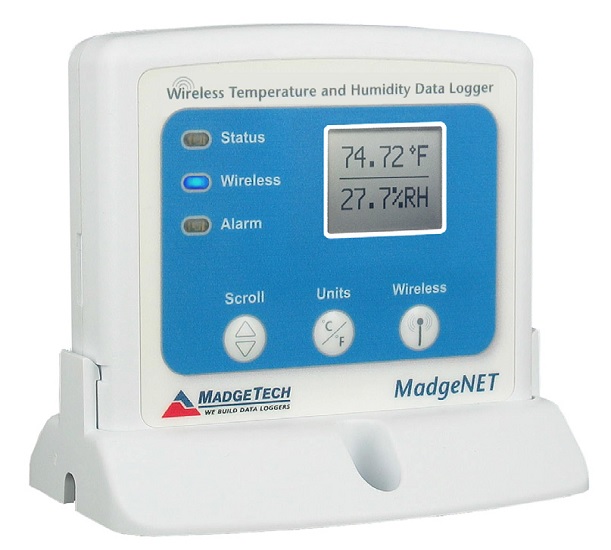

Two-way Wireless temperature and humidity data logger with LCD
Manufacturer : Madgetech
TECHNICAL SPECIFICATIONS
TEMPERATURE
| Internal Channel Temperature Sensor | Resistance Temperature Detector (RTD) |
|---|---|
| Internal Channel Temperature Range | -20 to +60°C |
| Internal Channel Temperature Resolution | 0.1°C |
| Internal Channel Temperature Calibrated Accuracy | ±0.5°C |
HUMIDITY
| Humidity Sensor | Relative Humidity Sensor |
|---|---|
| Humidity Range | 0 to 95%RH |
| Humidity Resolution | 0.1%RH |
| Humidity Calibrated Accuracy | ±3.0%RH, ±2.0 %RH typical @ 25°C (10 to 90%RH; 5 to 55°C) |
WIRELESS
| RF Carrier Frequency | 2.45GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully by-directional communication. |
|---|---|
| RF Baud Rate | 250,000 |
| Output Power | +0dBm typical |
| Receiver Sensitivity | -95dBm typical |
| Typical outdoors Line of sight | Up to 2000' |
| Typical Indoors line of sight | Up to 500' |
GENERAL
| Memory | 16,128 readings per channel |
|---|---|
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Baud Rate | 250,000 |
| LED Indicators | Green, Blue & Red |
| Battery Life | 3 years (at a 1 minute reading rate) |
| Material | ABS plastic |
| Dimensions | 3.0" x 3.5" x 0.95" (76.2mm x 88.9mm x 24.1mm) - Data logger only |
| Operating Environment | -20°C to +60°C (-4°F to +140°F) 0 to 95% RH non-condensing |
| Required Interface Package | RFC1000 |
| Approvals | US(FCC), CA(IC), CE |
