RFTCTemp2000A

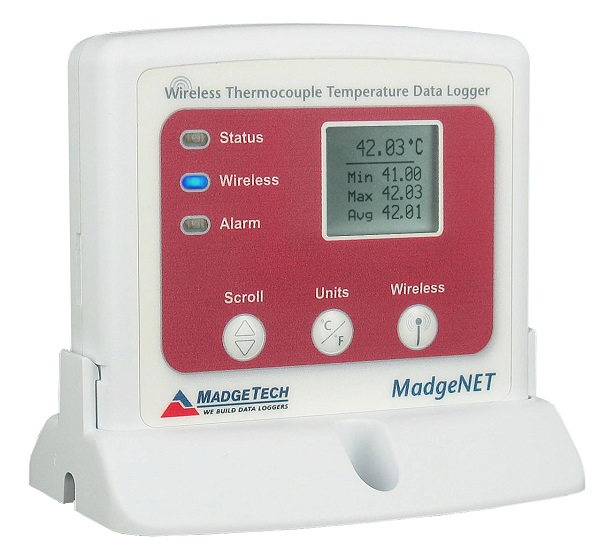

Two-way Wireless thermocouple based temperature data logger with LCD
Manufacturer : Madgetech
TECHNICAL SPECIFICATIONS
TEMPERATURE
| Internal Channel Temperature Sensor | Internal Semiconductor |
|---|---|
| Internal Channel Temperature Range | -20~+60°C |
| Internal Channel Temperature Resolution | 0.1°C |
| Internal Channel Temperature Calibrated Accuracy | ±0.1°C |
| Remote Channel Temperature Sensor | Thermocouple types: J,K,T,E,R,S,B,N |
| Remote Channel Temperature Range | Thermocouple dependent |
| Remote Channel Temperature Resolution | Thermocouple dependent |
| Remote Channel Temperature Calibrated Accuracy | Thermocouple dependent |
WIRELESS
| RF Carrier Frequency | 2.45GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully by-directional communication. |
|---|---|
| Output Power | +0dBm typical |
| Receiver Sensitivity | -95dBm typical |
| Typical outdoors Line of sight | Up to 2000' |
| Typical Indoors line of sight | Up to 500' |
GENERAL
| Memory | 16,128 readings per channel |
|---|---|
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Baud Rate | 250,000 |
| LED Indicators | Green, Blue & Red |
| Battery Life | 3 years (at a 1 minute reading rate) |
| Material | ABS plastic |
| Dimensions | 3.0" x 3.5" x 0.95" (76.2mm x 88.9mm x 24.1mm) - Data logger only |
| Operating Environment | -20~+60°C, 0~95%RH non-condensing |
| Required Interface Package | RFC1000 |
| Approvals | US(FCC), CA(IC), CE |
