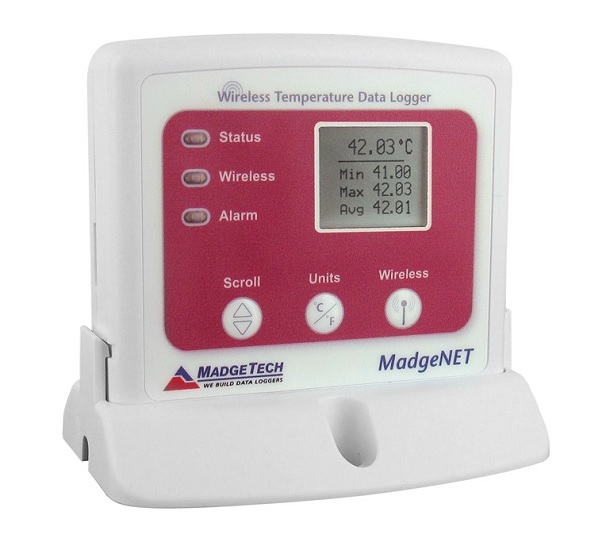

RFTemp2000A
Wireless temperature data logger featuring a digital display
Manufacturer : Madgetech
TECHNICAL SPECIFICATIONS
TEMPERATURE
| Internal Channel Temperature Sensor | Internal Semiconductor |
|---|---|
| Internal Channel Temperature Range | -20~+80°C |
| Internal Channel Temperature Resolution | 0.01°C |
| Internal Channel Temperature Calibrated Accuracy | ±0.5°C |
WIRELESS
| RF Carrier Frequency | 2.45GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully by-directional communication. |
|---|---|
| Output Power | +0dBm typical |
| Receiver Sensitivity | -95dBm typical |
| Typical outdoors Line of sight | Up to 2000' |
| Typical Indoors line of sight | Up to 500' |
GENERAL
| Memory | 32,256 readings per channel |
|---|---|
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Baud Rate | 250,000 |
| LED Indicators | Green, Blue & Red |
| Battery Life | 5 years (at a 1 minute reading rate) |
| Material | ABS plastic |
| Dimensions | 3.25" x 3.5" x 0.95" 82.6mm x 88.9mm x 24.1mm) - Data logger only |
| Operating Environment | -20~+80°C, 0~95%RH non-condensing |
| Required Interface Package | RFC1000 |
| Approvals | US(FCC), CA(IC), CE |
