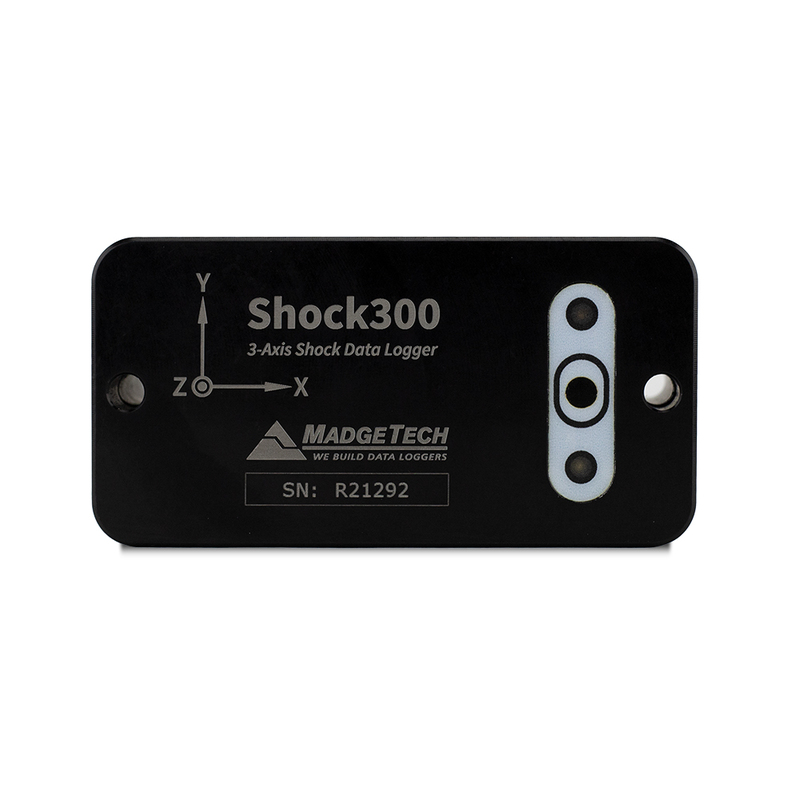

Click on image to zoom
Shock300
Τri-axial, stand-alone, compact shock data logger with three built-in acceleration ranges
Manufacturer : Madgetech
The Shock300 is a tri-axial, stand-alone, compact shock data logger with three built-in acceleration ranges.
Key Features
- Three programmable acceleration ranges to choose from: ±15 g, ±100 g and ±300 g
- >4M readings of non-volatile memory
- 1kHz sampling rate
- Rechargeable Battery with three month battery life on single charge
- Direct USB interface connection
General
| Memory | 4,192,254 readings (1,397,418 per channel, all channels in use) |
| Reading Rate | 90 days typical at 64Hz rate |
| Dimensions | 3.4 in x 1.7 in x 1.3 in (86 mm x 43 mm x 33 mm) |
| Operating Environment | -20 ºC to +60 ºC, 0 %RH to 95 %RH non-condensing |
| Required Interface Package | USB-C cable required (included); 1MBaud |
| Approvals | CE compliant EMC Directive 2014/30/EU RoHS Directive 2011/65/EU |
Shock
| Accelerometer Type | MEMS Semiconductor |
| Acceleration Range(g): | ±15 g / ±100 g / ±300 g |
| Acceleration Resolution(g): | 0.02 g/0.05 g/0.2 g |
| Calibrated Accuracy (g) | ±0.3 g/±2.0 g/±6.0 g |
| Sampling Rate | 1000 Hz |
| Reading Rate | 1024 Hz to 5 minutes for shock |
