TCTEMPX16

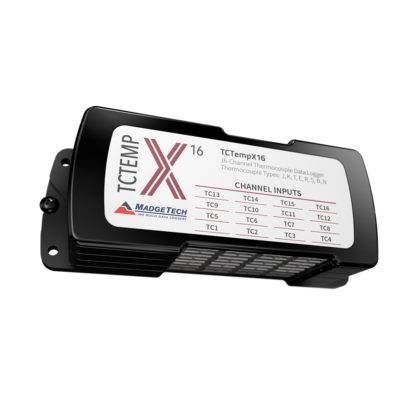

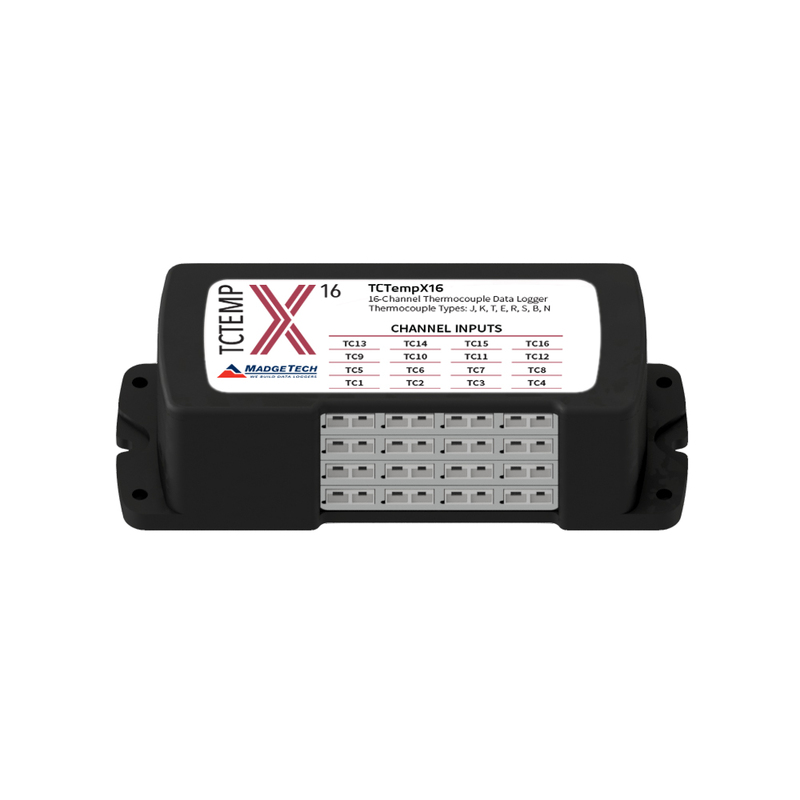

16-channel thermocouple-based temperature data logger
Manufacturer : Madgetech
The TCTempX16 is a 16-channel thermocouple-based temperature data logger with a reading rate of up to 4 Hz, ideal for a variety of applications, whether it is remote temperature monitoring or multiple points in a central location.
This device simultaneously measures and records 131,008 readings per channel, and users can disable channels to maximize memory capacity. For easy identification, each channel can be named with up to a ten digit title.
In addition, the TCTempX16 features individual cold junction compensation for each channel providing increased accuracy and response time, and if a probe is removed or severed during logging, the software automatically annotates the data.
The TCTempX16 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
General
| Memory (all 16 Channels enabled) |
131,008 readings per channel; 4,192,256 total readings |
| Reading Rate | 4Hz up to 1 reading every 24 hrs |
| Cold Junction Compensation | Automatic, based on internal channel |
| Battery Life | 18 Months Typical |
| Material | Black Anodized aluminum |
| Dimensions | 2.7 in x 7.25 in x 2.15 in(69mm x 184 mm x 54 mm) |
| Required Interface Package | USB(Interface Cable Required); 115,200 |
| Operating Environment | -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH, non-condensing |
| Approvals | CE |
Temperature
| Internal Channel Temperature Range | -20°C to +60°C(-4°F to 140°F) |
| Internal Channel Temperature Resolution | 0.01°C(0.018°F) |
| Internal Channel Calibrated Accuracy | +/-0.5°C(-20°C to +60°C) |
| Remote Channel Thermocouple Types | J, K, T, E, R, S, B, N |
| Remote Channel Thermocouple Connection | Female subminiature(SMP) |
| Cold Junction Compensation | Automatic, based on internal channel |
| Maximum Thermocouple Resistance | 1000 Ω, < 100Ω recommended |
| Remote Channel Temperature Sensor | Thermocouple Types J, K, T, E, R, S, B ,N |
| Remote Channel Temperature Range | Thermocouple Dependent |
| Remote Channel Temperature Resolution | Thermocouple Dependent |
| Remote Channel Temperature Calibrated Accuracy | Thermocouple Dependent |
