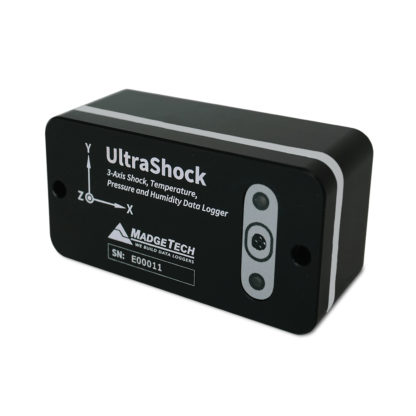

UltraShock
Temperature, Humidity, Pressure, and Tri-Axial Shock Data Logger
Manufacturer : Madgetech
TECHNICAL SPECIFICATIONS
General
| Memory | 4,000,000 readings (660,000 per channel, all channels in use) |
| Reading Rate | 1024 Hz to 5 minutes for shock, selectable in software. Temperature, pressure & humidity sampled approx. every 2 seconds at intervals shorter than 2 seconds. Otherwise, sampled at the reading rate. |
| Battery Life | 90 days typical at 64Hz rate |
| Material | Anodized aluminum |
| Dimensions | 3.4 in x 1.7 in x 1.3 in (86 mm x 43 mm x 33 mm) |
| Operating Environment | -20 ºC to +60 ºC, 0 %RH to 95 %RH non-condensing |
| Required Interface Package | USB (type C cable required); 1MBaud |
| Approvals | CE compliant EMC Directive 2014/30/EU RoHS Directive 2011/65/EU IP Rating 64 |
Temperature
| Sensor | Semiconductor |
| Range | -20 ºC to +60 ºC |
| Resolution | 0.1 ºC |
| Accuracy | ±0.5 ºC (+0 ºC to +50 ºC) |
Humidity
| Sensor | Capacitive Polymer |
| Range | 0 %RH to 95 %RH |
| Resolution | 0.1 %RH |
| Calibrated Accuracy | ±3 %RH (±2 %RH typical at 25 ºC) |
| Specified Accuracy Range | 0 °C to +50 °C; 20 %RH to 80 %RH |
Pressure
| Sensor | Semiconductor Strain Gage |
| Range | 100 to 1300 mbar |
| Resolution | 0.05 mbar |
| Calibrated Accuracy | ±1.5 mbar at 25 ºC; at 750 mbar |
Shock
| Accelerometer Type | MEMS Semiconductor |
| Acceleration Range (g) | ±15 g/±100 g/±300 g |
| Acceleration Resolution (g) | 0.02 g/0.05 g/0.2 g |
| Calibrated Accuracy (g) | ±0.3 g/±2.0 g/±6.0 g |
| Sampling Rate | 1000 Hz |
| Accelerometer Freq. Resp. | >1000 Hz (15 g) >500 Hz (100 g, 300 g) |
| Reading Rate | 1024 Hz to 5 minutes for shock, selectable in software. Temperature, pressure & humidity sampled approx. every 2 seconds at intervals shorter than 2 seconds. Otherwise, sampled at the reading rate. |
