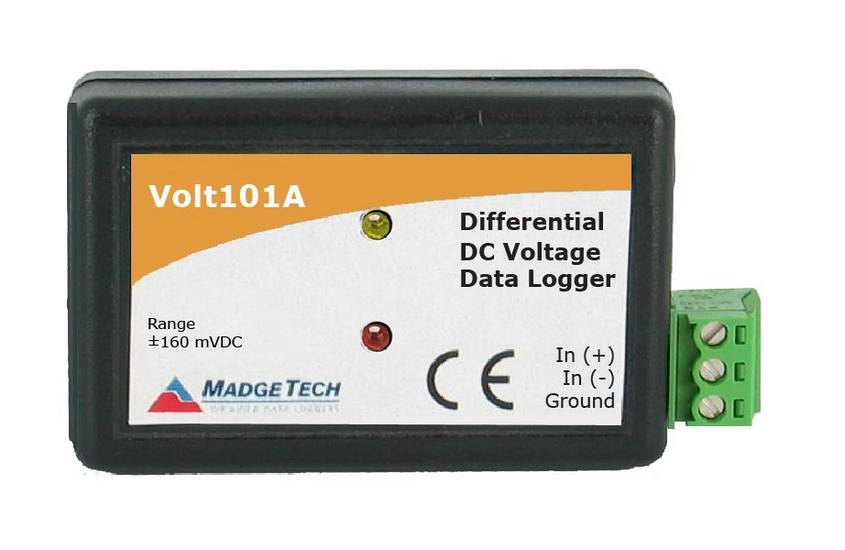

Volt101A-160mV
Differential Input DC Voltage Data Logger with 10 Year Battery Life
Manufacturer : Madgetech
TECHNICAL SPECIFICATIONS
VOLTAGE
| Voltage Range | ±160mVDC |
|---|---|
| Voltage Resolution | 5μV |
| Voltage Calibrated Accuracy | ±0.01%FSR |
GENERAL
| Memory | 1,000,000 readings 330,000 in enhanced start/stop mode |
|---|---|
| Reading Rate | 4 readings every second to 1 every 24 hours |
| Baud Rate | 115,200 |
| LED Indicators | Red & Green |
| Battery Life | 10 years typical at a 15 minute reading rate |
| Material | ABS plastic |
| Dimensions | 1.4" x 2.5" x 0.6" (36mm x 64mm x 16mm) |
| Operating Environment | -40~+80°C, 0~95%RH non-condensing |
| Required Interface Package | IFC200 |
| Approvals | CE |
