DI01-02
Diver Communications System
TECHNICAL SPECIFICATIONS
A quality robust diver's communications system using micro-pic and audio power amplifier technology. Produces clear communications at an affordable price.

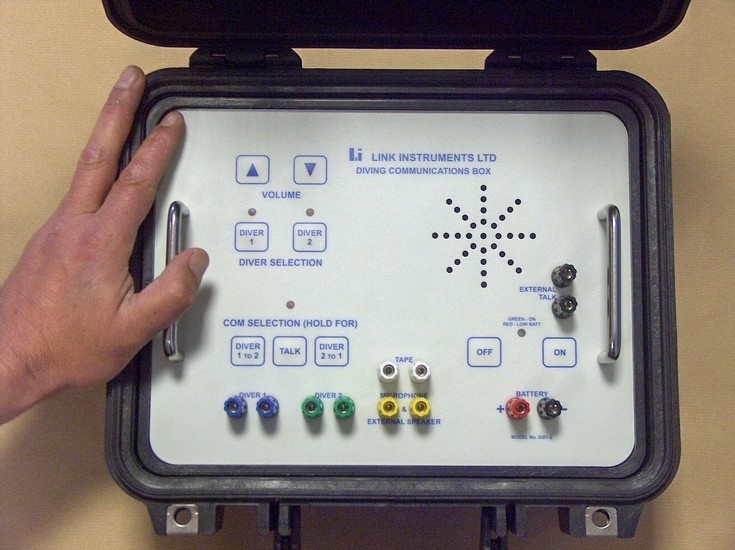

The DI01-2 Diving Communications Box is designed and manufactured by Link Instruments Ltd. The unit is robustly made in a waterproof Peli case with push button controlled which are easily operated even when wearing gloves. The unit uses 2 wires to connect to each diver and has all the features required when controlling one or two commercial divers.
Specifications
Diving Communications Charger
- UK Voltage
- Fully microprocessor controlled charger, including maintenance charge once fully charged.
- Case Dimensions: 340 x 295 x 152 mm
- Case Weight: Weight approx 2kg
- Battery Supply: 12V Ah Lead Acid Gel Battery
- Low Battery: Red/amber/green LED battery charge indicator
- Battery Life: 60hrs standby/listen, 9 hrs talk time
- Amplification: 5W output power, on 8 Ω
- Frequency Response: 40 – 20,000 Hz
- Connections: Diver 1 & Diver 2, External Speaker/ Microphone (supervisor), External Microphone, Tape output, 12 Volt input / output. All in 4mm multi connector (6 supplied with unit)
DI01-02 Diving Communications Box Kit Complete
- DI01-02 Diving Communications Box with internal re-chargeable battery
- Diving Communications Battery charger, 240 V UK Spec.
- Diving Communications Battery charger, universal
- Instruction Manual
