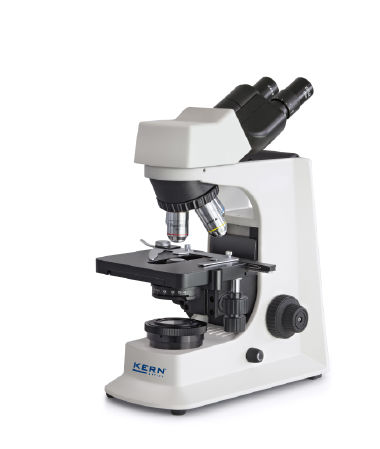

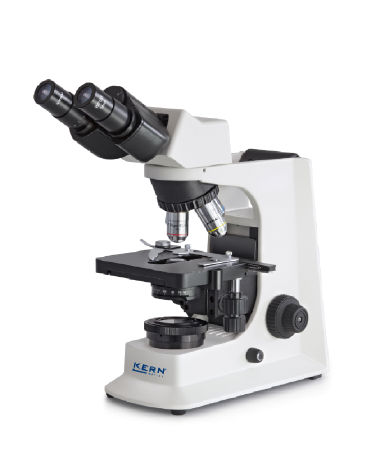

OBF-OBL Series
Stable laboratory microscopes for all common routine applications
Manufacturer : Kern
- Through the simple Köhler lighting, the adjustable field diaphragm and a pre-centred and height-adjustable Abbe condenser with adjustable aperture diaphragm, these microscopes produce superb images in both the light and dark field
- As standard, these microscopes, depending on the model, are fitted with wide-field eyepieces, achromatic, planachromatic or infinitely corrected E-Plan lenses
- These binocular microscopes are fitted with a dioptre compensation
- A trinocular head is available as an option, so that you can connect a camera
- A revolving unit for up to 4 lenses and a large specimen stage are included with delivery as standard
- The following optional accessory items are available: Various eyepieces, lenses, a complete polarisation kit, a phase-contrast unit as well as complete HBO and LED fluorescence kits etc.
- The light is provided by a 20 Watt halogen lighting unit or by a 3 Watt LED version as an alternative
- A central feature of this adaptable, robust microscope range is the stable mechanism which can be adjusted precisely
· Eyepieces: WF 10x18 mm / WF 10x20 mm · Objectives: 4x / 10x / 40x / 100x · Overall dimensions WxDxH 395x200x380 mm · Net weight approx. 6,5 kg
