ORM-UN
Digital refractometer
Area of application: Urine
Manufacturer : Kern
- The handy and robust design allows the easy, efficient and sustainable use in everyday life
- The large, easy-to-read display with integrated temperature display supports the user to reliably determine the measurement
- The integrated automatic temperature compensation (ATC) means that you can work easily and quickly, as you do not have to manually convert the measurement
- A quick and user-friendly calibration of the refractometer is possible at any time using commercially available distilled water
- The KERN ORM refractometers are accurate and universal maintenance free digital handheld refractometers.
- Other key features are the easy handling and sturdiness
- The refractometers of the KERN ORM series are protected against dust and splash water according to the international protection class IP65. You can rinse the refractometer under running water after use

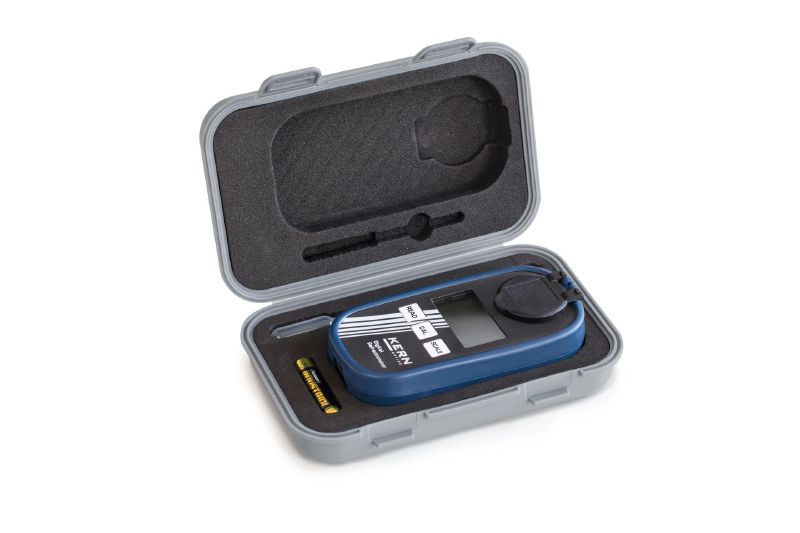

- Included in the scope of supply
- -
- - Pipette
- - 1 × AAA (1.5 V)
- - User manual
- Power supply: 1 × AAA (1.5 V)
- Service life of the batteries: approx. 10,000 measurements
- ATC (Automatic temperature compensation)
- Minimum sample volume: 2 drops
The following models are particularly suitable for the measurement of the specific gravity in urine (density) in human as well as in veterinary medicine. Furthermore, the quantity of serum (serum protein in urine) can be determined. Alternatively the display can be switched to show Brix or the refractive index.
Main areas of application:
- Hospitals
- Doctor's surgeries
- Medical training institutions
- Care homes and nursing homes
- Sports medicine (drug testing)
- Veterinary practices
|
Model
|
Scales
|
Measuring
range |
Accuracy
|
Division
|
|
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ORM 1UN | Refractive index Brix Urine (spec. gravity) Serum proteine |
1,3330 nD - 1,4200 nD 0,0 % - 50,0 % 1,000 sgU - 1,050 sgU 0,0 g/dl - 12,0 g/dl |
0,0003 nD 0,2 % 0,002 sgU 0.2 g/dl |
0,0001 nD 0,1 % 0,001 sgU 0,1 g/dl |
||||||||
| ORM 2UN | Refractive index Brix Urine (spec. gravity) - cat Urine (spec. gravity) - dog |
1,3330 nD - 1,4200 nD 0,0 % - 50,0 % 1,000 sgU - 1,060 sgU 1,000 sgU - 1,060 sgU |
0,0003 nD 0,2 % 0,002 sgU 0,002 sgU |
0,0001 nD 0,1 % 0,001 sgU 0,001 sgU |
