OS 4000-7100-7200

Click on image to zoom

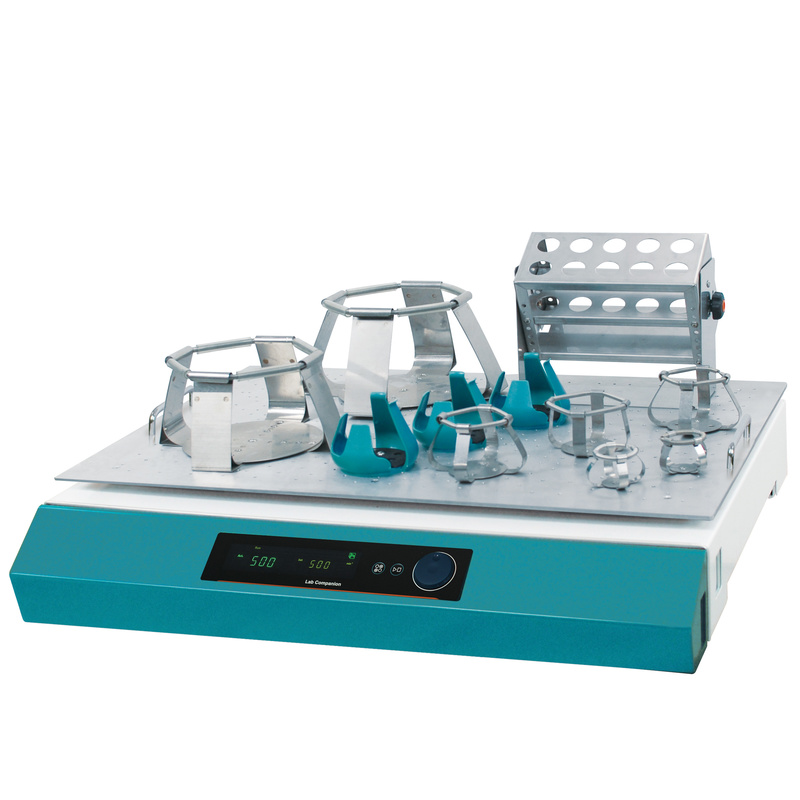

OS 4000-7100-7200

Open air Shakers

Manufacturer : JEIOtech

SPECIFICATIONS







Model

OS-4000

OS-7100

OS-7200

Control system

PID feedback control

Display

VFD

Shaking
system

Motion type

Orbital

Amplitude Size
(mm / inch, dia.)

19.1 / 0.75 (Standard)

25.4 / 1 (Adjustable)

25.4 / 1

50.8 / 2

Accuracy

±1% of set speed (>100rpm) / ±1 (<100rpm)

Timer

1 min. to 999 hr 59 min.

Speed Range (RPM)

10 to 500

10 to 450

30 to 500

30 to 300

Max Load (kg / Ibs)

14 / 30.9
at 500 rpm
21 / 46.3
at 400 rpm

10 / 22.0
at 450 rpm
21 / 46.3
at 300 rpm

10 / 22.0
at 500 rpm
25 / 55.1
at 400 rpm

23 / 50.7
at 300 rpm
35 / 77.2
at 200 rpm

Dimensions

Platform (W×D)
(mm / inch)

5450×450 / 17.7×17.7

755×520 / 29.6×20.5

Overall (W×D×H)
(mm / inch)

510x632x156 / 20.1x24.9x6.1

755x627x151 / 29.7x24.7x5.9

Net weight (kg / Ibs)

43 / 94.8

117 / 257.9

Electric requirements
(230V, 50 / 60Hz)

 0.3A 0.4A

Cat. No.

AAH3D1315K

AAH3D1415K

AAH3D1515K

Electric requirements
(120V, 50 / 60Hz)

 0.6A 0.8A

Cat. No.

AAH3D1365U

AAH3D1465U

AAH3D1565U
