Click on image to zoom
MS-G

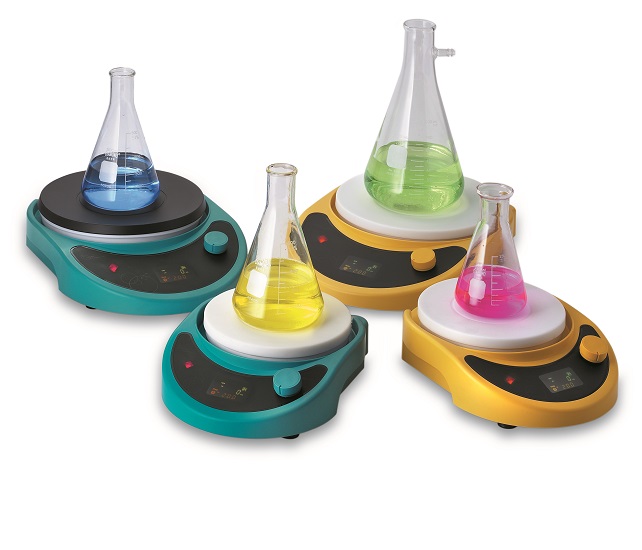

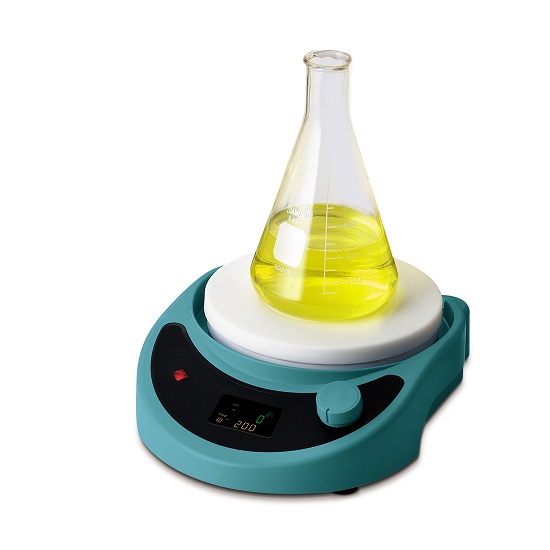

Magnetic Stirrers (Digital), 30 ~ 2000 RPM
Manufacturer : JEIOtech
TECHNICAL SPECIFICATIONS
| Model | MS-17G | MS-22G | ||
|---|---|---|---|---|
| Technical Data |
Speed Control | Feedback control with PID | ||
| Stirring Capacity (Liter, H2O) | 4 | 5 | ||
| Speed Range (RPM) | 30 to 2,000 | |||
| Speed Display | VFD | |||
| Motor Rating Input / Output (W) | 2.9 / 1.6 | |||
| Magnetic Bar (Ø×L, mm / Inch), Max. | 8×40 / 0.31×1.57 | 10×50 / 0.39×1.97 | ||
| Load, Max (kg / lbs) | 20 / 44.09 | 25 / 55.12 | ||
| Top Plate | Material | Poly propylene with non-slip silicon cover | ||
| Dimension (mm / inch, Ø) | 170 / 6.69 | 220 / 8.66 | ||
| General Data |
Body Material | Poly propylene | ||
| Dimension (mm / inch, W×D×H) | 210×280×72 / 8.27×11.02×2.82 | 260×360×72 / 10.24×14.17×2.82 | ||
| Weight (kg / lbs) | 1.35 / 2.98 | 1.75 / 3.86 | ||
| Electrical Requirements | AC 100 ~ 240V, 50 / 60Hz | |||
| Power Consumption (W) | 6 | |||
| Protection Class (DIN EN 60529) | IP42 | |||
| Cat. No. | Persian Blue | KR plug | AAH331215BK | AAH331315BK |
| US plug | AAH331215BU | AAH331315BU | ||
| Yellow | KR plug | AAH331215YK | AAH331315YK | |
| US plug | AAH331215YU | AAH331315YU | ||
