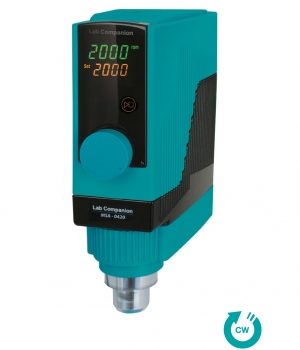

MSA-0420 (Analog)
Powerful stirring and simple operation with sustainable economic benefits.
Manufacturer : JEIOtech
Performance & Convenience
Years of vibration-free and silent operation.
- Equipped with a maintenance-free BLDC motor to generate smooth, quiet, and yet powerful stirring.
Powerful torque capable of handling high viscosity tasks.
Maintenance of constant motor speed by PID feedback control system even under conditions of changing viscosity.
Prevention of accidental spills or splashes thanks to microprocessor controlled smooth start and stop functions.
Designed for simple and quick operation.
Well illuminated digital display panel with sensitive touch buttons.
- Set/present rpm, power ratio (%) are visible together on one screen.
Compact and slim head design for diverse flexibility in configuring other test equipment and accessories. (optional)
Safety
Sturdy aluminum main body efficiently absorbing and emitting the heat generated by the motor.
Safety features against overload and overheating for continuous operation.
| Model | MSA-0420 | |
|---|---|---|
| Speed control | PID feedback control | |
| Speed range (rpm) | 80 to 2,000 | |
| Chuck range (mm / inch, dia) | 3 to 10 / 0.1 to 0.4 | |
| Stirring capacity, Max. (L, H2O) | 20 | |
| Viscosity, Max. (cP) 1) | 5,000 (~2,000rpm) / 10,000 (~1,200rpm) / 30,000 (~300rpm) / 50,000 (~200rpm) | |
| Torque, Max. (N·cm) | 19 | |
| Motor rating input / output (W) | 70 / 40 | |
| Material | Body / Cover / Motor | Powder coated aluminum / Polypropylene / BLDC |
| Dimension | Overall (W×D×H) (mm / inch) | 75x215x150/ 2.9x8.5x5.9 |
| Net weight (Kg / lbs) | 2.8 / 6.2 | |
| Protection class (DIN EN 60529) | IP30 | |
| Electrical requirements (230V 50/60Hz) | 0.5A | |
| Cat. No. | AAH373325K | |
| Electrical requirements (120V 60Hz) | 0.5A | |
| Cat. No. | AAH373325U | |
1) Silicone oil with using 3-bladed propeller impeller(Ø50) under room temperature of 26℃, 60%RH, no load.
※ Permissible environmental conditions: temperature (5-40℃) and relative humidity (up to 80%).
※ Main body comes together with chuck handle and attaching rod
