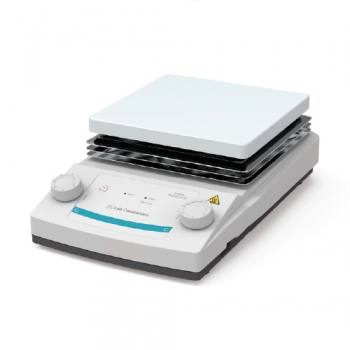

TM Series
Easy to control with simple dial knobs for general lab heating and stirring applications.
Manufacturer : JEIOtech
Performance & Convenience
- Integrated design of the heater and the top plate provides exceptional heat transfer rate and quick heat up capability.
- Fast and precise stirring operations are enabled by BLDC motor and special magnet with extremely strong magnetic coupling power.
- Instant halt of the stirring operation due to the exceptionally fast response characteristics.
- Smooth-start mechanism provides virtually no decoupling of stir bars even with viscous media.
- Large stirring capacity up to 20 liter in case of water.

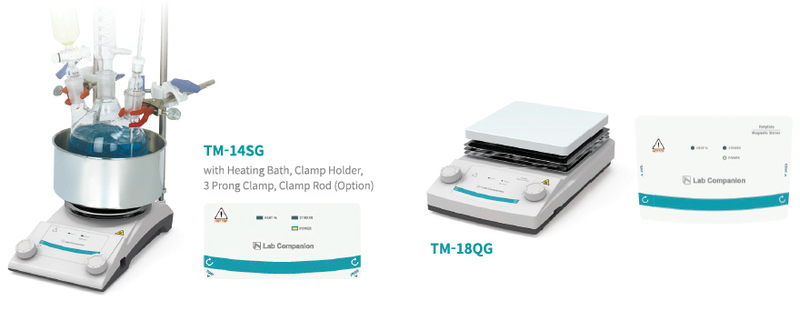

- Non-slip heating bath with concavo-convex bottom prevents unintentional slips of the bath. (optional)
- A transparent safety shield protects users from liquid splashes. (optional)
- Support rod allows for diverse flexibility in configuring other test equipment and accessories. (optional)
Safety
- Built in thermal shutdown and current limit protection.
- Hot top warning Indicator for preventing accidental injuries.
- ※ CSA except for TM-18QG. ※ RoHS for TM-14SG
| Model | TM-14SG | TM-14RB | TM-17SG | TM-17RB | TM-18QG | |
|---|---|---|---|---|---|---|
|
Heating |
Temperature range (℃ / ℉) |
Top plate, Max. 350 / 662 |
||||
|
Control |
Scale |
|||||
|
Heating power (W) |
600 |
800 |
||||
|
Stirring |
Speed range (rpm) |
50 to 2,000 |
||||
|
Capacity (L / cu ft, H2O) |
20 / 0.71 |
|||||
|
Magnetic bar, Max. |
8 x 40 / 0.31 x 1.57 |
|||||
|
Safety |
Hot top indicator (℃ / ℉) |
Warning lamp (50 / 122) |
||||
|
Over temp. |
Top plate / Main body / PCB |
|||||
|
Over current |
Current limit protection |
|||||
|
Motor |
BLDC motor |
|||||
|
Load, Max. (kg / Ibs) |
25 / 55.12 |
|||||
|
Top plate |
Shape |
Round type |
Square type |
|||
|
Material |
Ceramic coated aluminum |
|||||
|
Dimension |
140 / 5.51 |
170 / 6.69 |
180x180/ 7.08x7.08 |
|||
|
Body |
Shape |
Straight body |
Round handles |
Straight body |
Round handles |
Straight body |
|
Material |
Aluminum |
|||||
|
Dimension |
161x290x100/ 6.34x11.42x3.94 |
210x294x99/ 8.27x11.57x3.9 |
191x330x101/ 7.52x12.99x3.98 |
240x324x100/ 9.45x12.76x3.94 |
209x326x102/ 8.22x12.83x4.0 |
|
|
Net weight (kg / Ibs) |
2.8 / 6.17 |
3 / 6.61 |
3.5 / 7.72 |
3.6 / 7.94 |
3.8 / 8.37 |
|
|
Electrical requirements (230V, 50/60Hz) |
3.0 A | 4.0 A | ||||
| Cat. No. | AAH34245K | AAH34315K | AAH34275K | AAH34325K | AAH34285K | |
|
Electrical requirements (120V, 60Hz) |
5.0 A | 6.7A | ||||
| Cat. No. | AAH34243U | AAH34313U | AAH34273U | AAH34323U | AAH34283U | |
※ Permissible environmental conditions: temperature (5-40℃) and relative humidity (up to 80%).
※ CSA except for TM-18Q. ※ RoHS for TM-14SB.
