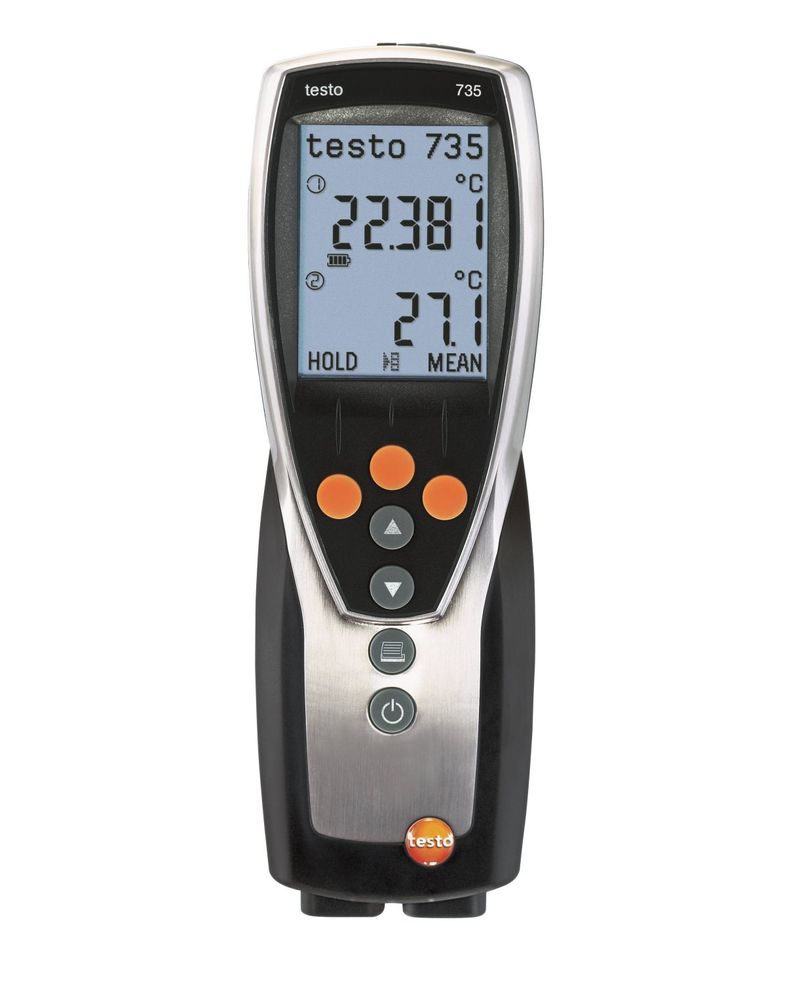

735-1

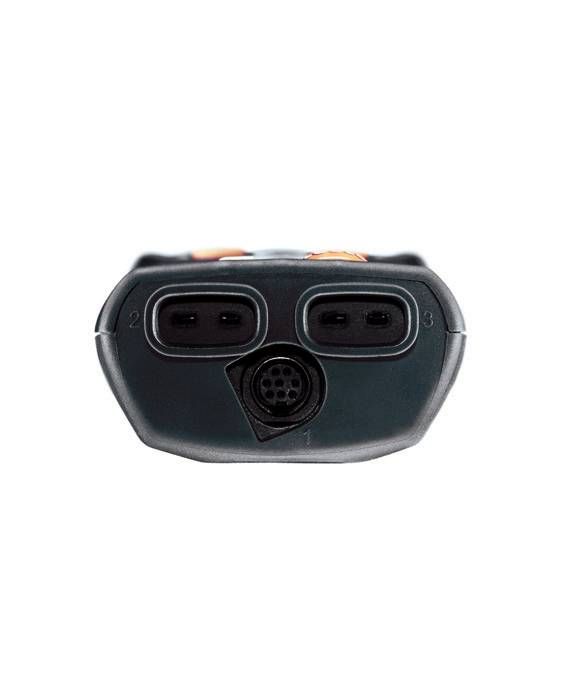

Temperature measuring instrument with one probe input for attaching high-precision Pt100 probes and two inputs for attaching fast thermocouple probes of the K, T, J and S types.
Manufacturer : testo
-
With optional probes that measure core temperature, surface temperature and air temperature
-
Up to three probes can be attached and three additional temperature probes can also be connected to the temperature measuring instrument by radio
-
Accurate measurement up to 0.05 °C with Pt100 temperature probe (optional)
-
Display of min., max. and mean values and calculation of the differential temperature (delta T)
| Temperature - Pt100 | |
|---|---|
|
Measuring range |
-200 to +800 °C |
|
Accuracy |
±0.2 °C (-100 to +199.9 °C) ±0.2 % of mv (Remaining Range) |
|
Resolution |
0.05 °C |
| Temperature - NTC |
|---|
| Temperature - TC Type K (NiCr-Ni) | |
|---|---|
|
Measuring range |
-200 to +1370 °C |
|
Accuracy |
±0.3 °C (-60 to +60 °C) ±(0.2 °C + 0.3 % of mv) (Remaining Range) |
|
Resolution |
0.1 °C |
| Temperature - TC Type T (Cu-CuNi) | |
|---|---|
|
Measuring range |
-200 to +400 °C |
|
Accuracy |
±0.3 °C (-60 to +60 °C) ±(0.2 °C + 0.3 % of mv) (Remaining Range) |
|
Resolution |
0.1 °C |
| Temperature - TC Type J (Fe-CuNi) | |
|---|---|
|
Measuring range |
-200 to +1000 °C |
|
Accuracy |
±0.3 °C (-60 to +60 °C) ±(0.2 °C + 0.3 % of mv) (Remaining Range) |
|
Resolution |
0.1 °C |
| Temperature - TC Type S (Pt10Rh-Pt) | |
|---|---|
|
Measuring range |
0 to +1760 °C |
|
Accuracy |
±1 °C (0 to +1760 °C) |
|
Resolution |
1 °C |
| General technical data | |
|---|---|
|
Storage temperature |
-30 to +70 °C |
|
Weight |
428 g |
|
Dimensions |
220 x 74 x 46 mm |
|
Operating temperature |
-20 to +50 °C |
|
Housing |
ABS / TPE / Metal |
|
Protection class |
IP65 |
|
Standards |
EN 13485 |
|
Warranty |
2 years |
|
Battery type |
Alkali manganese, mignon, type AA |
