PRTemp1000D

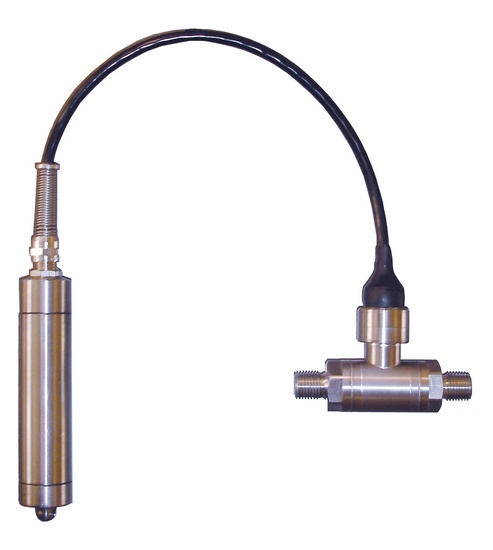

Differential Pressure and Temperature Data Logger with a 1/4" NPT differential fitting
Manufacturer : Madgetech
TECHNICAL SPECIFICATIONS
TEMPERATURE
| Temperature Sensor | Semiconductor |
|---|---|
| Temperature Range | -20 to +80°C |
| Temperature Resolution | 0.1°C |
| Temperature Calibrated Accuracy | ±0.5°C |
PRESSURE
| Pressure Sensor | Semiconductor, Strain Gauge |
|---|---|
| Pressure Range | 0 to 30, 100, 300, or 500 PSID |
| Pressure Resolution | 0 to 30: 0.002, 0 to 100: 0.005, 0 to 300: 0.02 and 0 to 500: 0.05 |
| Pressure Calibrated Accuracy | ±0.25% FSR, 0.1% at 25°C typical |
GENERAL
| Memory | 16,383/channel |
|---|---|
| Reading Rate | 2 seconds up to 12 hours |
| Baud Rate | 2,400 |
| Battery Life | 1 year |
| Material | 303 stainless steel |
| Dimensions | .99" H x 21.87"L x 3.35W (25 x 533 x85 mm) |
| Submersible | Yes |
| Operating Environment | -20~+80°C, 0~100%RH |
| Required Interface Package | IFC110 or IFC200 |
