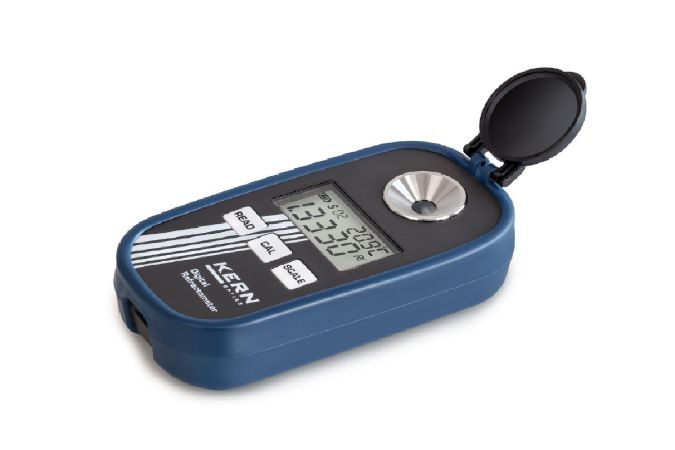

ORM-HO
Ψηφιακό διαθλασίμετρο
Area of application: Honey
Κατασκευαστής :
- The KERN ORM refractometers are accurate and universal maintenance free digital handheld refractometers.
- Other key features are the easy handling and sturdiness
- The handy and robust design allows the easy, efficient and sustainable use in everyday life
- The large, easy-to-read display with integrated temperature display supports the user to reliably determine the measurement
- The integrated automatic temperature compensation (ATC) means that you can work easily and quickly, as you do not have to manually convert the measurement
- A quick and user-friendly calibration of the refractometer is possible at any time using commercially available distilled water
- The refractometers of the KERN ORM series are protected against dust and splash water according to the international protection class IP65. You can rinse the refractometer under running water after use
- Included in the scope of supply
- -
- - Pipette
- - 1 × AAA (1.5 V)
- - User manual
Technical data
- Measuring temperature: 0 – 40 °C
- Overall dimensions W×D×H 121 × 58 × 25 mm
- Net weight approx. 289 g
Power supply: 1 × AAA (1.5 V)
- Service life of the batteries: approx. 10,000 measurements
- ATC (Automatic temperature compensation)
- Minimum sample volume: 2 drops
The following model is particularly suitable for the measurement of the water content in honey according to the International Honey Commission (IHC2002) and “degrees Baumé” to determine the relative density of liquids. Alternatively the display can be switched to show the Brix or refractive index. Alternatively the display can be switched to show Brix or the refractive index.
Main areas of application:
- Beekeeping
- Honey production
|
Model
|
Scales
|
Measuring
range |
Accuracy
|
Division
|
|
|
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ORM 1HO
|
Refractive index
Brix Baumé Water content |
1,3330 nD - 1,5177 nD
0,0 % - 90,0 % 33,0 °Bé - 48,0 °Bé 5,0 % - 38,0 % |
0,0003 nD
0,2 % 0,2 °Bé 0,2 % |
0,0001 nD
0,1 % 0,1 °Bé 0,1 % |
|
