EMC-6 series
Φασματοφωτόμετρα UV/Vis
Κατασκευαστής : EmcLab

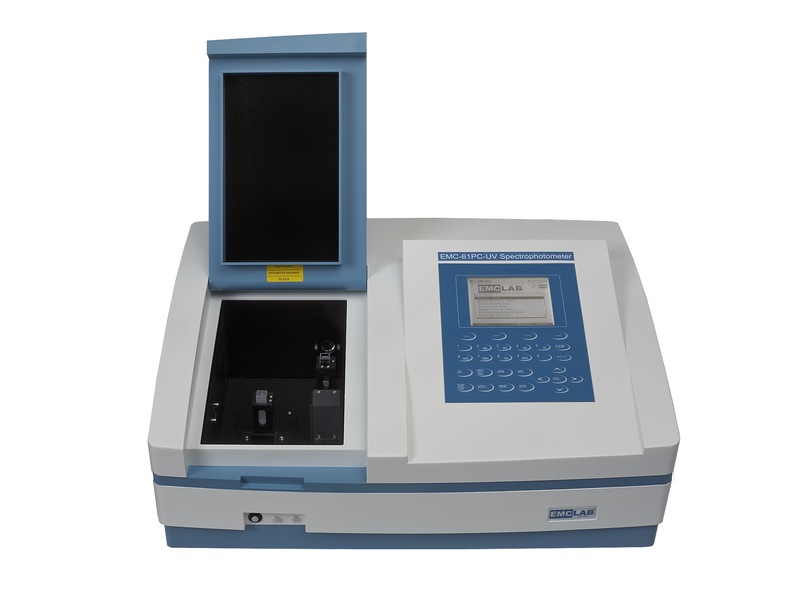

EMC-6 series are advanced double beam spectrophotometers.
The two detectors measure sample and reference respectively and simultaneous for optimizing measurement accuracy. They provide excellent performance for measurements in the range of 190 to 1100 nm. The memory is 32K. They are suitable for pharmaceutical, biochemical and clinical lab applications as well as routine applications such as quantitative analysis, kinetics, wavelength scan, multi-wavelength and DNA/Protein analysis. The UV/VIS Analyst software based on Microsoft Windows® makes the instruments versatile. The instruments provide excellent performance for measurements.
Features:
- Fixed or variable slits (Bandwidth)
- Sealed, solvent-resistant tactile keypad with alpha-numeric entry for file names and units
- Pre-aligned deuterium lamp for easy lamp replacement. The status of the lamp may be monitored
- Online software upgrading via internet helps to keep it updated
- Data Download-to-PC software expands the data storage to unlimited
- The PC model comes standard with Windows® based application software UV-VIS Analyst
- Data can be saved by USB memory device directly
| Model | EMC-61PC-UV | EMC-61PCS-UV |
| Wavelength Range | 190-1100 nm | |
| Spectral Bandwidth | 1.8 nm | 0.5/1/2/4/5 nm |
| Optical System | Double Beam, grating 1200 lines/mm | |
| Wavelength Accuracy | ±0.3 nm | |
| Wavelength Repeatability | 0.2 nm | |
| Scan Speed | Hi, MED, LOW, MAX. 3000 nm/min | |
| Photometric Accuracy | <±0.5 % T or ±0.005A@1A | |
| Photometric Range | 0-200 % T, -0.3 - 3A | |
| Stray Light | 0.05 % T@220, 340 nm | |
| Stability | ±0.001A/h @500 nm | |
| Display | 5 inches LCD (320*240 dots) | |
| Baseline Flatness | ±0.001A | |
| Standard Cell Holder | Standard 10 mm single cell holder (2 pcs.) | |

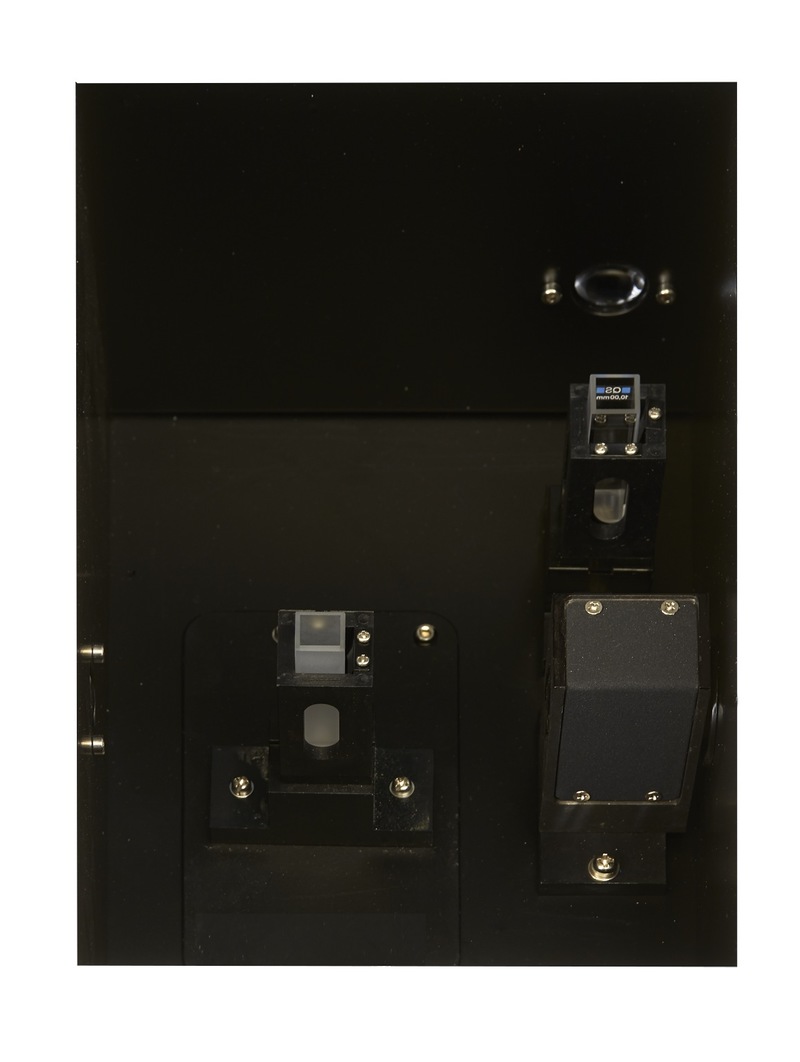

| Sample compartment | Standard 10 mm path length cuvette | |
| Light Source | Tungsten & Deuterium lamp (Pre-aligned) | |
| Output | USB type A port for USB memory device (Right side) | |
| USB type B port for optional computer connectivity (Back) | ||
| Parallel port for printer | ||
| Power Requirement | AC 110/220V 50/60 Hz | |
| Dimensions (LxWxH) | 589 x 428 x 200 mm | |
| Weight | 22 kg | |
