TH-KE-ME-PE

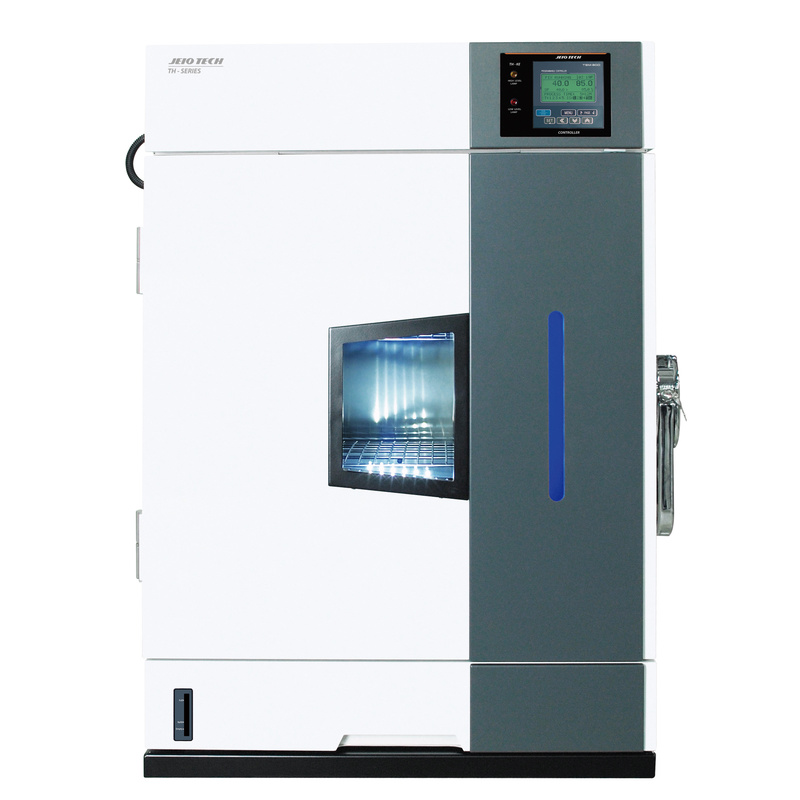

Θάλαμοι ελεγχόμενης θερμοκρασίας & υγρασίας, επιτραπέζιοι, από 25 έως 100 λίτρα
Κατασκευαστής : JEIOtech
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ
|
Model |
TC-KE-025 |
TC-KE-065 |
TC-KE-100 |
|
|---|---|---|---|---|
|
Chamber Volume (L / cu ft) |
25 / 0.9 |
65 / 2.3 |
100 / 3.53 |
|
|
Controller |
PID control (LCD Type) |
|||
|
Temperature1) |
Range (℃ / ℉) |
-35~150 / -31~302 |
||
|
Fluctuation2) at 50℃ (±℃ / ℉) |
0.5°C |
|||
|
Variation2) at 50℃ (±℃ / ℉) |
1°C |
|||
|
Time |
Heating3) |
60 (-40℃ → 100℃) |
||
|
Cooling3) |
70 (25℃ → -35℃) |
|||
|
Refrigeration |
System |
Mechanical single stage refrigerator system (air-cooled condenser) |
||
|
Refrigerant |
R-404A |
|||
|
Capacity (W) |
470 |
565 |
657 |
|
|
Cooler |
Plate fin cooler (cooper) |
|||
|
Heater |
Material |
Ni-Cr Wire Heater |
||
|
Drying Bulb (W) |
1000 |
1200 |
1500 |
|
|
Temperature Sensor |
Pt 100 |
|||
|
Material |
Internal |
Stainless steel #304 (2B polish) |
||
|
External |
Stainless steel #304 & Steel, 0.8t, Double painted & baked |
|||
|
Insulation |
Polyurethane foam 100mm [3.94"] |
|||
|
Door |
Glasswool |
|||
|
Air Flow (sirocco fan) |
60W×1EA |
60W×1EA |
60W×2EA |
|
|
Interface Port |
Basically RS-232C, [RS-485:optional] |
|||
|
Cable Port |
Basically one hole provided / Ø50mm (2") Optionally max. two holes available / Ø50 or 80mm (2 or 3.2") |
|||
|
Dimension (W×D×H) |
Internal (mm / inch) |
350×220×350 / 13.8×8.7×13.8 |
400×330×495 / 15.7×13×19.5 |
500×380×530 / 19.7×15×20.9 |
|
External (mm / inch) |
553×874×919 / 21.8×34.4×36.2 |
603×1037×1064 / 23.7×40.8×41.9 |
760×1105×1099 / 29.9×43.5×43.3 |
|
|
Viewing Window (mm / inch) |
220×300 / 8.7×11.8 |
|||
|
Weight (kg / lbs) |
110 ±10 / 242.5 ±22 |
140 ±10 / 308.6 ±22 |
150 ±10 / 330.7 ±22 |
|
|
Electrical Requirements |
AC230V, 1ph, 60Hz |
7.4A |
8.8A |
10.8A |
|
AAH86111K |
AAH86121K |
AAH86131K |
||
|
AC230V, 1ph, 50Hz |
7.1A |
8.4A |
10.3A |
|
|
AAH86112K |
AAH86122K |
AAH86132K |
||
| Model | TH-ME-025 | TH-ME-065 | TH-ME-100 | |
|---|---|---|---|---|
| Chamber Volume (L / cu ft) | 25 / 0.9 | 65 / 2.3 | 100 / 3.53 | |

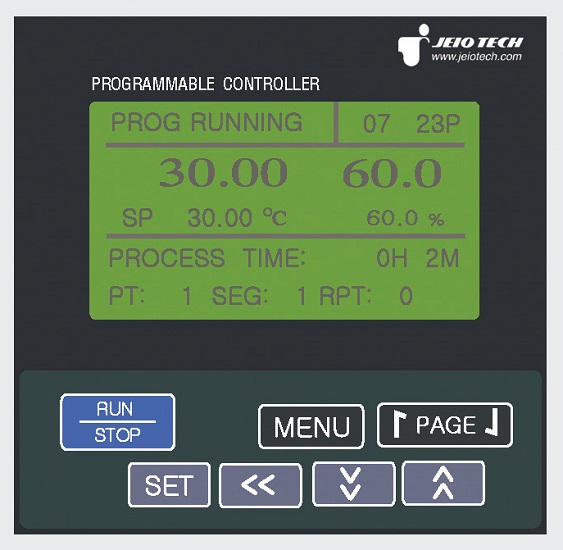

| Controller | Program controller (LCD type) | |||
| Temperature | Range (℃ / ℉) | -20 to 120 / -4 to 248 without humidity | ||
| Fluctuation 1) (±℃ / ℉) at 25℃ / 60%RH |
0.5 / 0.9 | 0.5 / 0.9 | 0.5 / 0.9 | |
| Variation 1) (±℃ / ℉) at 25℃ / 60% |
1.0 / 1.8 | 1.0 / 1.8 | 1.0 / 1.8 | |
| Time | Heating - without Humidity (Min.) |
55 From -15℃ to 120℃ (5℉to 248℉) | ||
| Cooling - without Humidity (Min.) |
60 From 20℃ to -15℃ (68℉ to 5℉) on singe point control * | |||
| Humidity | Range (%RH) | FULL RANGE : 20 to 95 45 to 75% at 15℃ (59℉) 40 to 95% at 20℃ (68℉) 20 to 95% at 40 to 80℃ (104 to176℉) 20 to 90% at 90℃ (194℉) |
||
| Fluctuation 1) (±%RH) at 60%RH / 55℃ |
1.6 | 0.4 | 0.5 | |
| Variation 1) (±%RH) at 60%RH / 55℃ |
3 | 3 | 3 | |
| Refrigeration | System | Mechanical single stage refrigerator system (air-cooled condenser) | ||
| Refrigerant | R-404A | |||
| Capacity (W) | 250 | 250 | 375 | |
| Cooler | Plate fin cooler (cooper) | |||
| Heater | Material | Ni-Cr Wire Heater / SUS sheath Heater | ||
| Drying Bulb (W) | 500 | 800 | 1000 | |
| Humidity Bulb (W) | 500 | 650 | 1000 | |
| Sensor | Temperature | Pt 100 | ||
| Humidity | Electronic sensor - Free of drying a wet pack and good reaction time | |||
| Material | Interior | Stainless steel #304 | ||
| Exterior | Steel, 1mm (0.04") / Double painted & baked | |||
| Insulation | Polyurethane foam 50mm (1.97") | |||
| Door | Glass wool | |||
| Air Flow (sirocco fan) | 60W x 1EA | 60W x 2EA | ||
| Water Tank | Capacity (L / cu ft) | 5 / 0.18 | 6 / 0.21 | 9 / 0.32 |
| Water Quality | pH6.2 to 7.2 / Electrical conductivity 20㎲/cm to below | |||
| Dimension(W×D×H) | Interior (mm / inch) |
350×220×350 / 13.8×8.7×13.8 | 400×330×495 / 15.7×13×19.5 | 500×380×530 / 19.7×15×20.9 |
| Exterior (mm / inch) |
500×760×850 / 19.7×29.9×33.5 | 550×890×1000 / 21.7×35×39.4 | 650×1000×1030 / 5.6×39.4×40.6 | |
| Net Weight (kg / lbs) |
80±5 / 176±11 | 110±5 / 242±11 | 130±5 / 286±11 | |
| Cable Port | Basically one hole provided / Ø 50mm (2")Optionally max. two holes available / Ø 50 or 80mm (2 or 3.2") | |||
| Interface Port | Basically RS-232C [RS-485 (Maximum 9 Units Control) - optional] | |||
| Model | TH-PE-025 | TH-PE-065 | TH-PE-100 | |
|---|---|---|---|---|
| Chamber Volume (L / cu ft) | 25 / 0.9 | 65 / 2.3 | 100 / 3.53 | |
| Controller | Program controller (LCD type) | |||
| Temperature | Range (℃ / ℉) | 0 to 120 / 32 to 248 - without humidity | ||
| Fluctuation 1) (±℃ / ℉) at 25℃ / 60%RH |
0.5 / 0.9 | 0.5 / 0.9 | 0.5 / 0.9 | |
| Variation 1) (±℃ / ℉) at 25℃ / 60% |
1.0 / 1.8 | 1.0 / 1.8 | 1.0 / 1.8 | |
| Time | Heating - without Humidity (Min.) | 40 From 0℃ to 120℃ (32℉ to 248℉) | ||
| Cooling - without Humidity (Min.) | 30 From 20℃ to 0℃ (68℉ to 32℉) on singe point control * | |||
| Humidity | Range (%RH) | FULL RANGE : 30 to 95 45 to 95 at 20℃ (68℉) 30 to 95 at 30 to 80℃ (86 to176℉) 30 to 90 at 85℃ (185℉) |
||
| Fluctuation 1) (±%RH) at 60%RH / 55℃ |
1.6 | 0.4 | 0.5 | |
| Variation 1) (±%RH) at 60%RH / 55℃ |
3 | 3 | 3 | |
| Refrigeration | System | Mechanical single stage refrigerator system (air-cooled condenser) | ||
| Refrigerant | R-404A | |||
| Capacity (W) | 250 | 250 | 375 | |
| Cooler | Plate fin cooler (cooper) | |||
| Heater | Material | Ni-Cr Wire Heater/ SUS sheath Heater | ||
| Drying Bulb (W) | 500 | 800 | 1000 | |
| Humidity Bulb (W) | 500 | 650 | 1000 | |
| Sensor | Temperature | Pt 100 | ||
| Humidity | Electronic sensor - Free of drying a wet pack and good reaction time | |||
| Material | Interior | Stainless steel #304 | ||
| Exterior | Stainless steel, 1mm (0.04") / Double painted & baked | |||
| Insulation | Polyurethane foam 50mm (1.97") | |||
| Door | Glass wool | |||
| Air Flow (sirocco fan) | 60W x 1EA | 60W x 2EA | ||
| Water Tank | Capacity (L / cu ft) | 5 / 0.18 | 6 / 0.21 | 9 / 0.32 |
| Water Quality | pH6.2 to 7.2/ Electrical conductivity 20㎲/cm to below | |||
| Dimension(W×D×H) | Interior (mm / inch) |
350×220×350 / 13.8×8.7×13.8 | 400×330×495 / 15.7×13×19.5 | 500×380×530 / 19.7×15×20.9 |
| Exterior (mm / inch) |
500×760×850 / 19.7×29.9×33.5 | 550×890×1000 / 21.7×35×39.4 | 650×1000×1030 / 25.6×39.4×40.6 | |
| Net Weight (kg / lbs) |
80±5 / 176±11 | 110±5 / 242±11 | 130±5 / 286±11 | |
| Cable Port | Basically one hole provided / Ø 50mm (2")Optionally max. two holes available / Ø 50 or 80mm (2 or 3.2") | |||
| Interface Port | Basically RS-232C [RS-485 (Maximum 9 Units Control) - optional] | |||
